Fig. 2
From: Utilizing solar energy to improve the oxygen evolution reaction kinetics in zinc–air battery

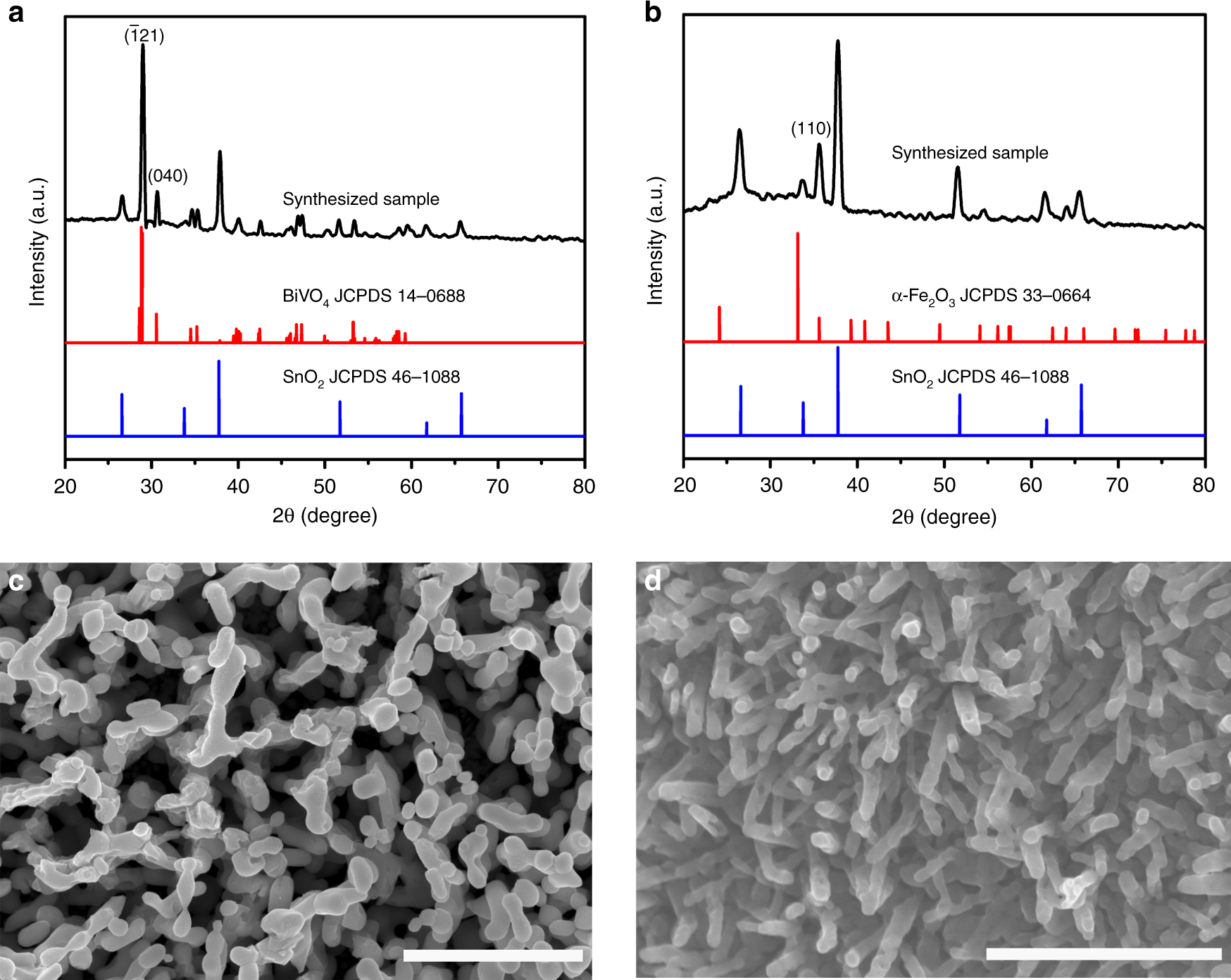

Characterization of the photoelectrodes. XRD patterns of a BiVO4 film and b α-Fe2O3 film. SEM images of c BiVO4 and d α-Fe2O3. Scale bars in c, d are 1 μm
