Fig. 4
From: Diffractive small angle X-ray scattering imaging for anisotropic structures

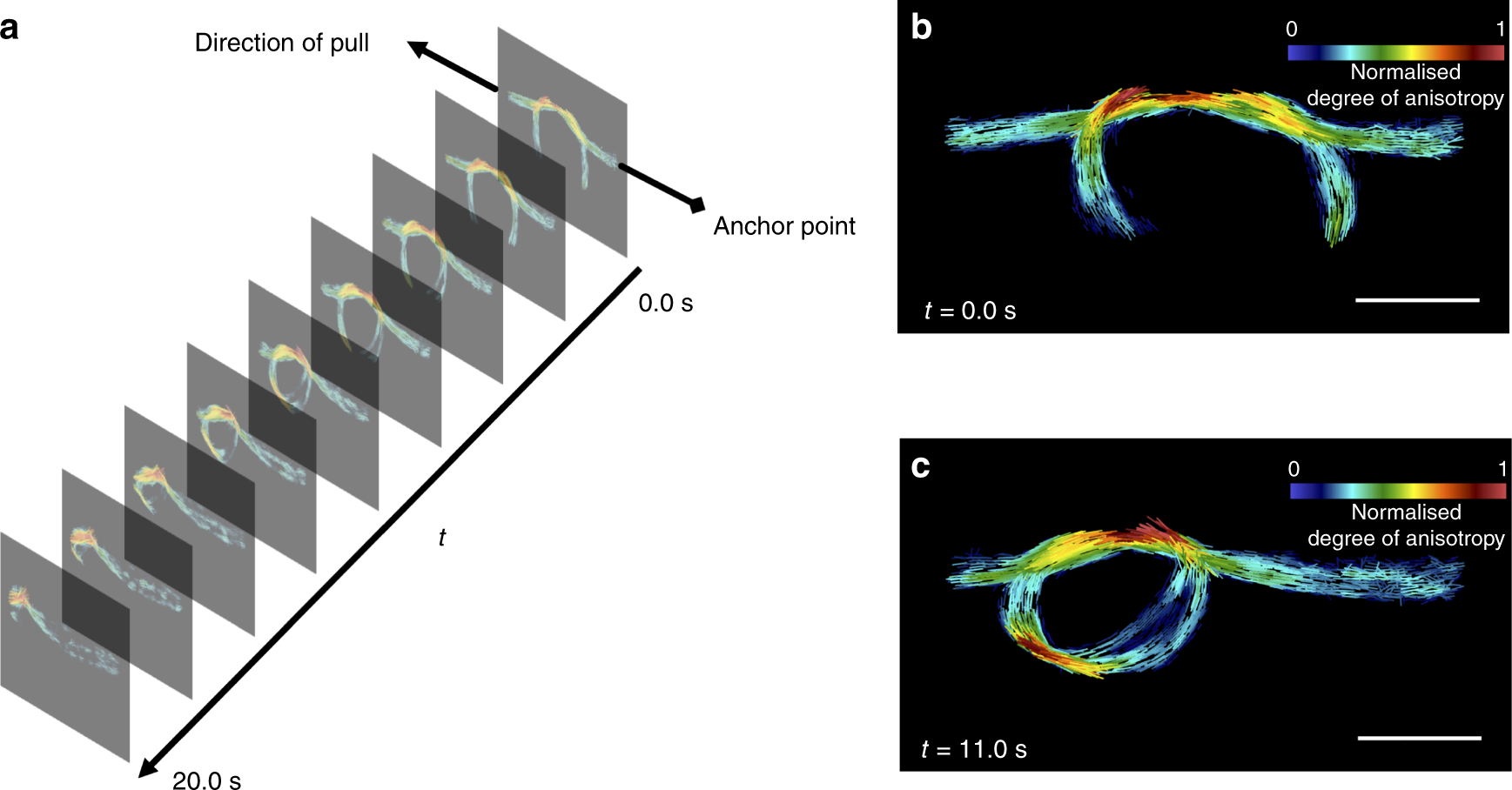

Real-time omnidirectional scattering imaging. a Schematic of the experimental setup with an ensemble of images encoding the underling fibre orientation and the degree of anisotropy. The fibre knot was pulled from one end while being anchored from the other. The images were collected with a frame rate of 25 frames per second for a total duration of 20 s. Extracted images at two different time points (b) \(t = 0.0\) s and (c) t = 11.0 s. The scale bars correspond to \(4\ {\rm{mm}}\)
