Fig. 4 | Nature Communications

Fig. 4

From: Site-selective remote C(sp3)–H heteroarylation of amides via organic photoredox catalysis

Fig. 4

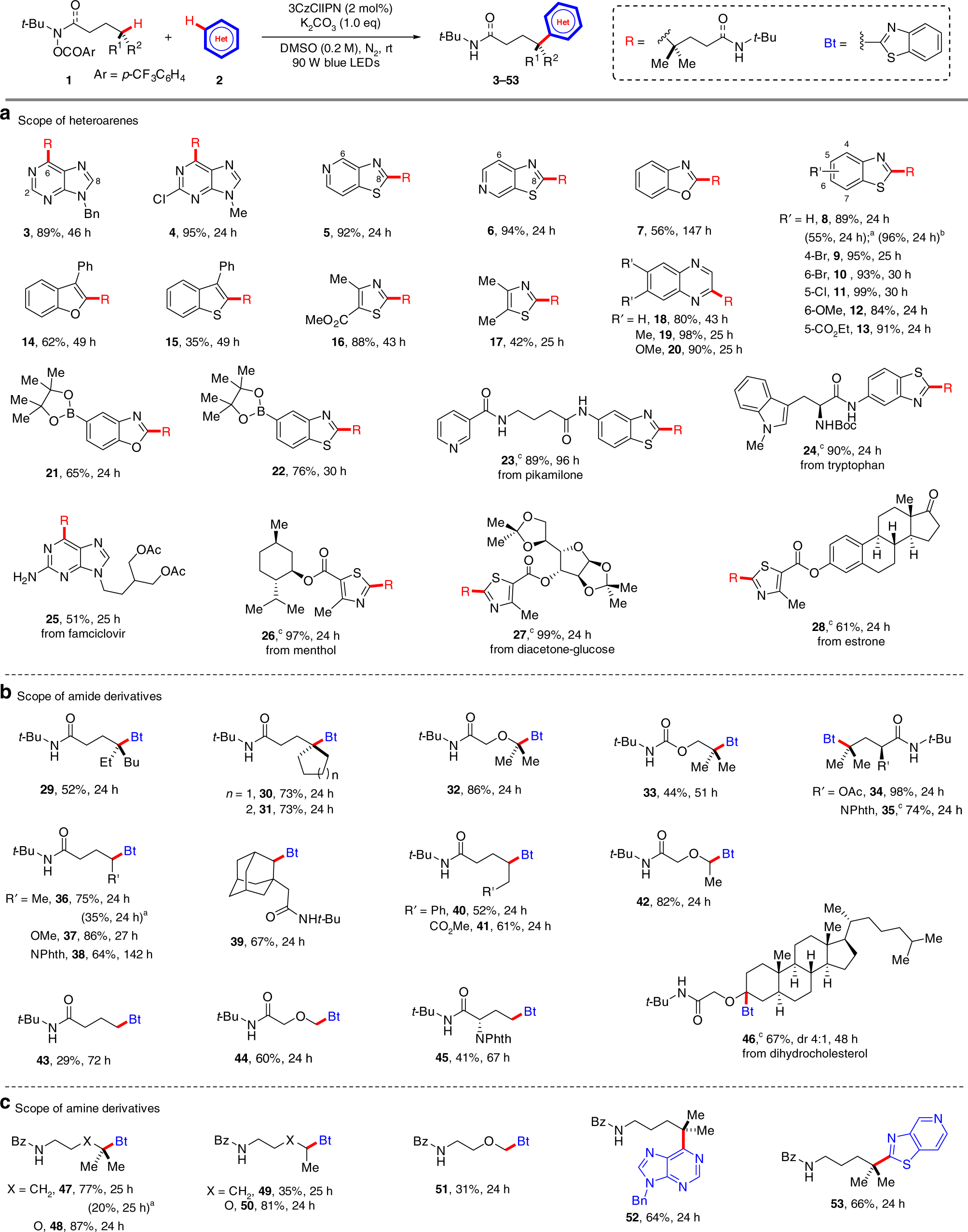

Scope of the substrates. a Scope of heteroarenes. b Scope of amide derivatives. c Scope of amine derivatives. Reaction conditions: 1 (0.2 mmol, 1.0 equiv), 2 (0.5 mmol), K2CO3 (0.2 mmol), and 3CzClIPN (2 mol%) in DMSO (1.0 mL), rt, 90 W blue LEDs. Yields are based on the isolated products. aWithout 3CzClIPN. b5 mmol scale of 1a. c0.1 mmol scale of 1a, 1h, and 1s, respectively
