Fig. 2

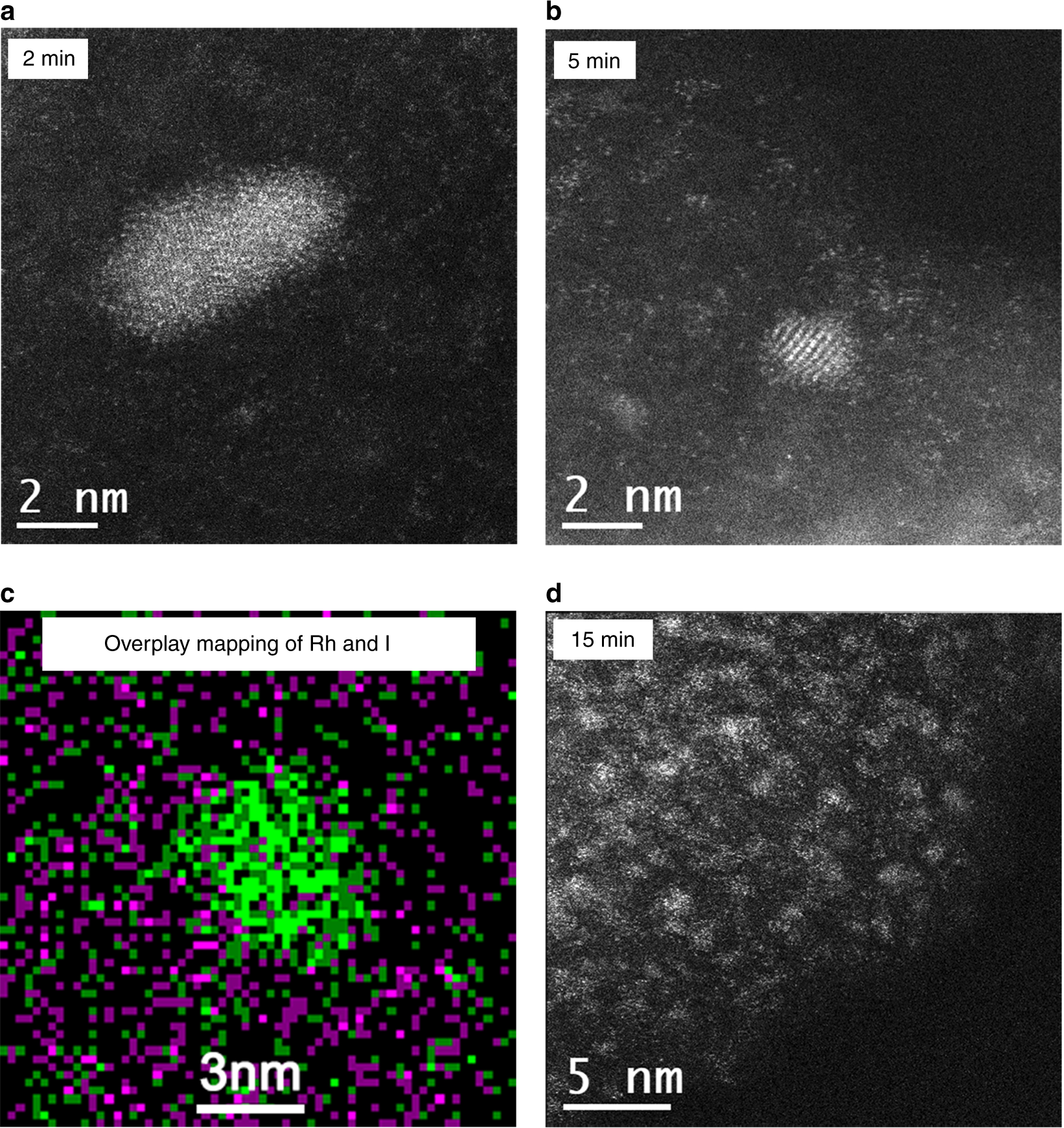

Time resolution HAADF-STEM pictures of Rh/AC dispersion. The sample treated by CO/CH3I at 513 K for a 2 min, b 5 min, and c the corresponding Rh and I atomic EDS mapping of Fig. 2b, d, 15 min. Green color denotes Rh element and pink color denotes I element
