Fig. 5
From: Brain activity regulates loose coupling between mitochondrial and cytosolic Ca2+ transients

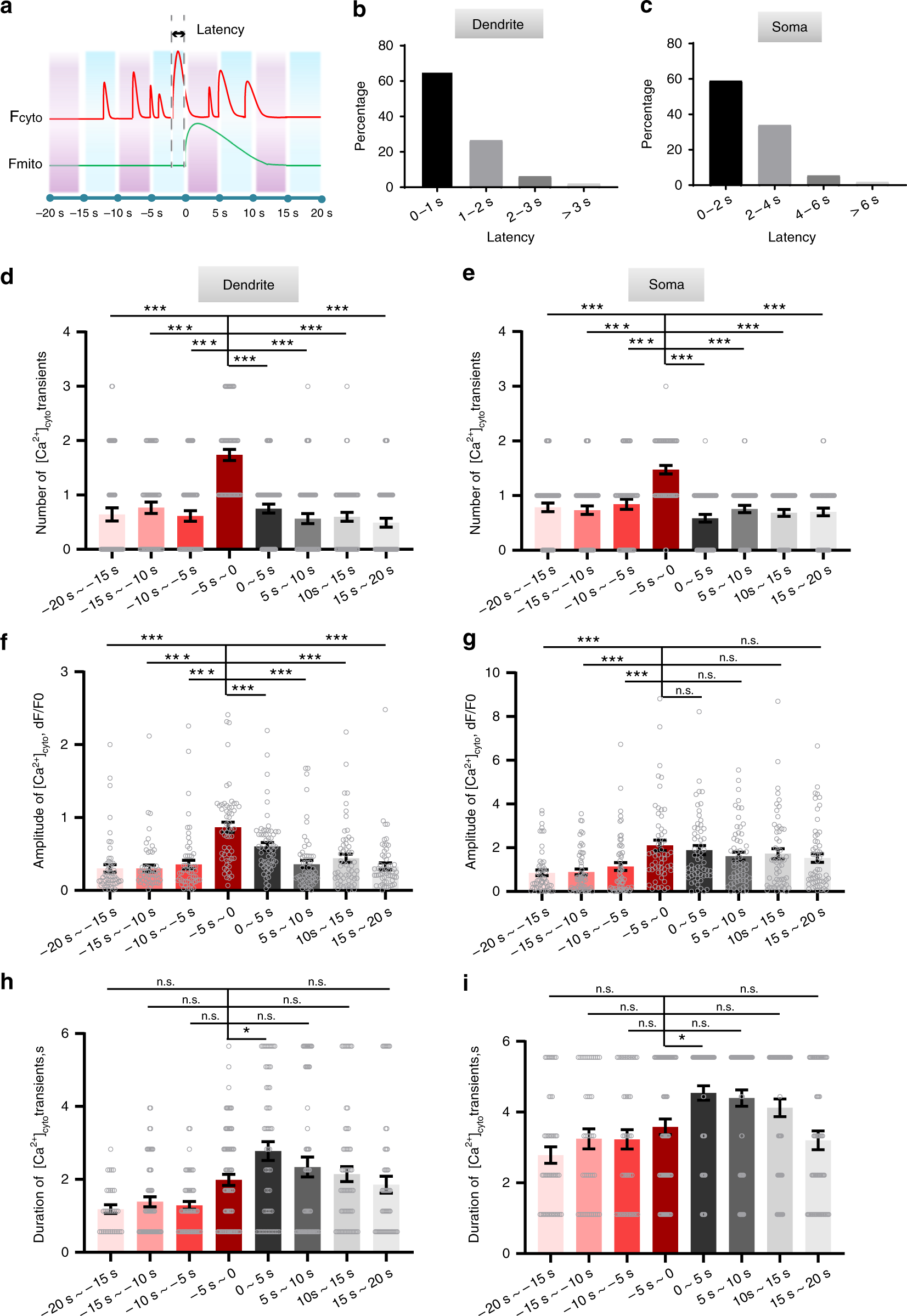

Temporal analysis of [Ca2+]mito and [Ca2+]cyto coupling. a Schematic of eight selected time windows centered on the onset of [Ca2+]mito transient. Latency: the delay of the onset of a coupled [Ca2+]mito-to-[Ca2+]cyto event. b, c Statistics of the coupling latency in dendrites (b, n = 48 events) and somas (c, n = 49 events). d–i Distribution of the number (d, e), peak amplitude (f, g), and duration of [Ca2+]cyto transients (h, i) over different time windows in dendrites (d, f, h, n = 42–60 dendrites from 6 mice) and somas (e, f, i, n = 40–60 somas from 7 mice). Data are presented as mean ± SEM. *P < 0.05. **P < 0.01. ***P < 0.0001, by one-way ANOVA and multiple comparisons. n.s.:no signicance. Source data are provided as a Source Data file.
