Fig. 5 | Nature Communications

Fig. 5

From: Enantiodivergence by minimal modification of an acyclic chiral secondary aminocatalyst

Fig. 5The alternative text for this image may have been generated using AI.

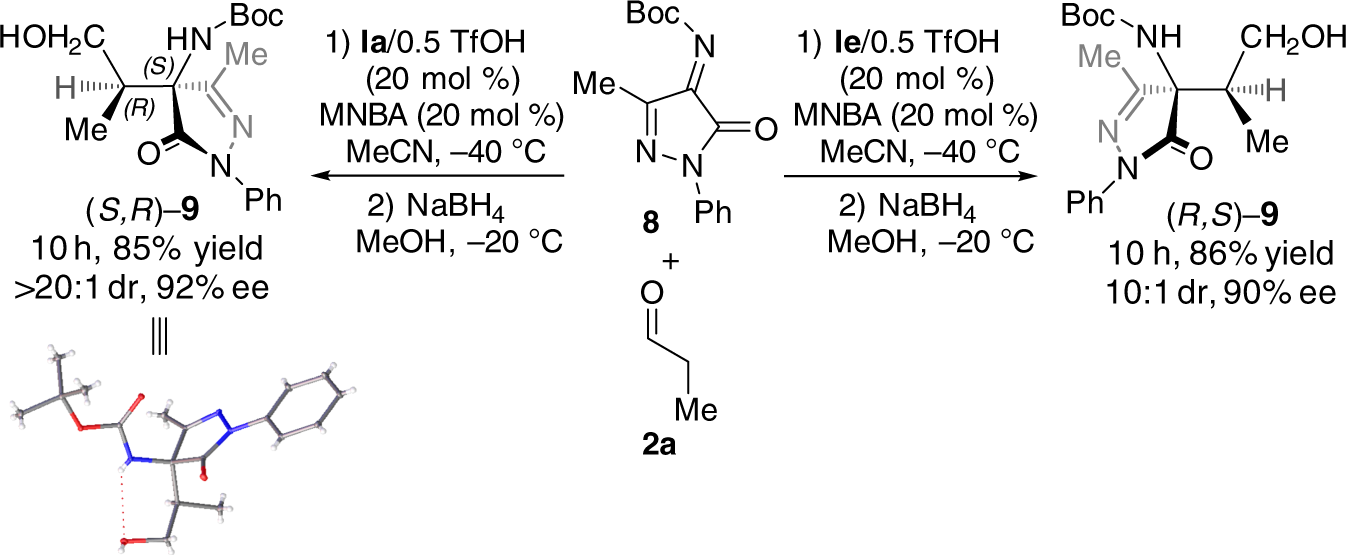

Enantiodivergent Mannich reaction of monocyclic ketimines. Reaction conditions for the formation of (S,R)-9: 8 (0.1 mmol), MNBA (0.02 mmol, 20 mol %), Ia/0.5TfOH (20 mol %), 2a (0.3 mmol), MeCN (0.8 mL), −40 °C. Reaction conditions for the formation of (R,S)-9: 8 (0.1 mmol), MNBA (0.02 mmol, 20 mol %), Ie/0.5TfOH (20 mol %), 2a (0.3 mmol), MeCN (0.8 mL), −40 °C
