From: Senescent cell turnover slows with age providing an explanation for the Gompertz law

Fig. 4

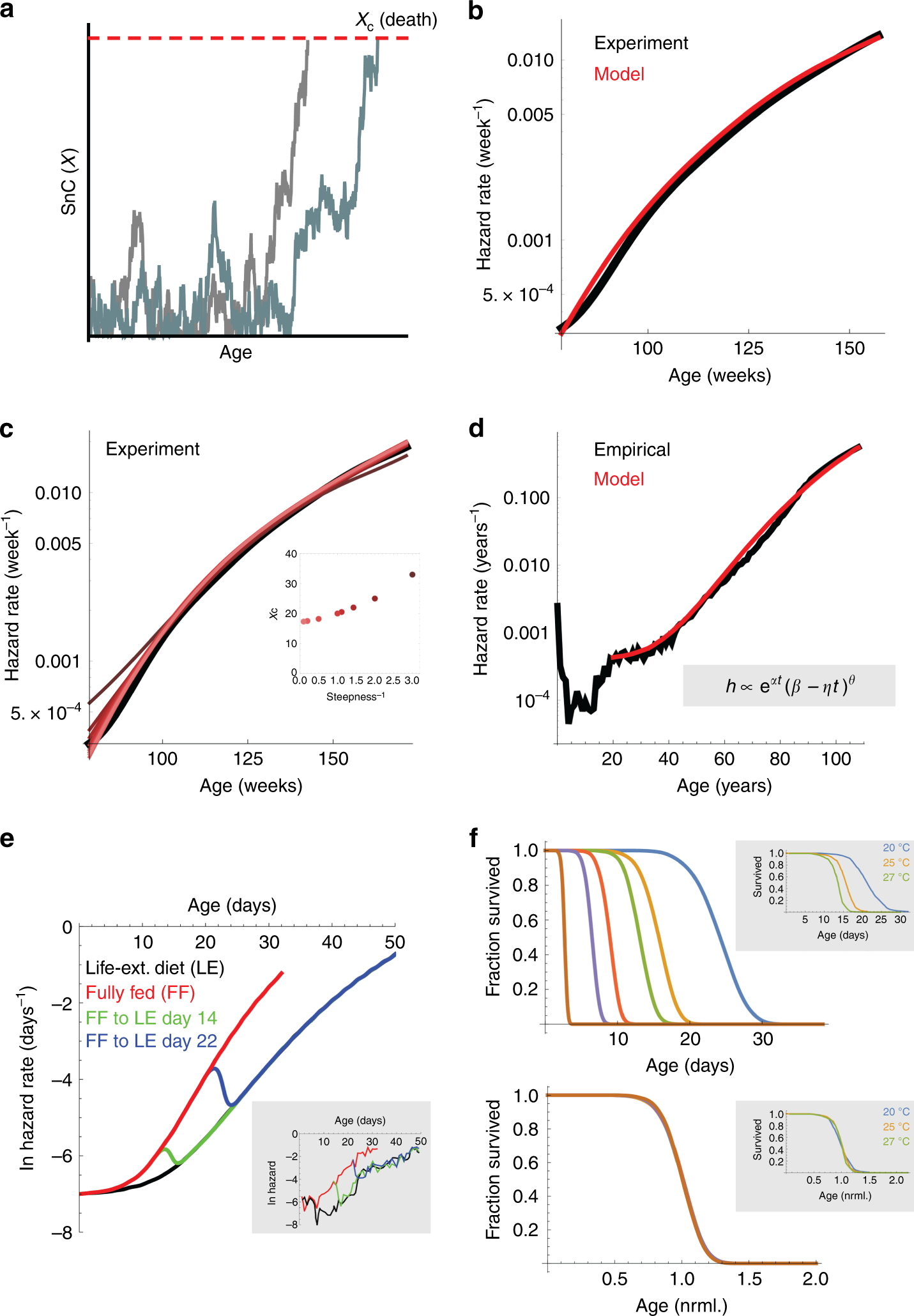

SR model can explain the variability in mortality between individuals. a To model the relation between risk of death and SnC levels, we assumed a simple threshold model where death occurs when SnC abundance exceeds a critical threshold XC. b Mouse mortality (C57BL/6J mice obtained from the Mouse Phenome Database60, black line) is well fit by the SR model (red line) with parameters consistent with the data of Figs. 1, 2, with death defined when SnC exceed a threshold (η = 0.084 day−1 year−1, β = 0.15 day−1, κ = 0.5, ε = 0.16 day−1, XC = 17). c Similar results are obtained by assuming a more general sigmoidal dependency between SnC abundance X and risk of death: \(h = \left( {1 + {\mathrm{{e}}}^{ - \theta \left( {X - X_{\mathrm{C}}} \right)}} \right)^{ - 1}\). Parameters are the same as b, except that XC is adjusted according to the steepness parameter θ (inset). d The SR model with added age-independent extrinsic mortality of 0.4 × 10−3 year−1 (red) matches human mortality statistics61 (black). Inset: approximate analytical solution for the first passage time in the SR model shows the Gompertz law and deceleration at old ages. The parameters are similar to b, except a ~60-fold decrease in η: η = 0.00135 day−1 year−1, β = 0.15 day−1, κ = 0.5, ε = 0.142 day−1, XC = 17. e SR model describes rapid shifts in mortality when fully fed Drosophila transition to a lifespan-extending dietary intervention (LE), (inset: experimental data from Mair et al.45), with β = 1 h−1, κ = 1, ε = 1 h−1, η = 0.03 day -1 h−1 and XC = 15. LE was modeled by a decrease in η: η = 0.02 h−1 day−1 (changes in other parameters lead to similar conclusions, see Supplementary Note 8). f Lifespan of C. elegans raised at different temperatures varies by an order of magnitude, but survival curves collapse on a single curve when time is scaled by mean lifespan (inset: data from Stroustrup et al. 35). The SR model provides scaling for perturbations that affect η, but not other parameters (β = 1 h−1, κ = 1, and ε = 1 h−1, η = 0.07 h−1 day−1, XC = 20, Supplementary Note 9). Source data are provided as a Source Data file.
