Fig. 3
From: Analysis of laser radiation using the Nonlinear Fourier transform

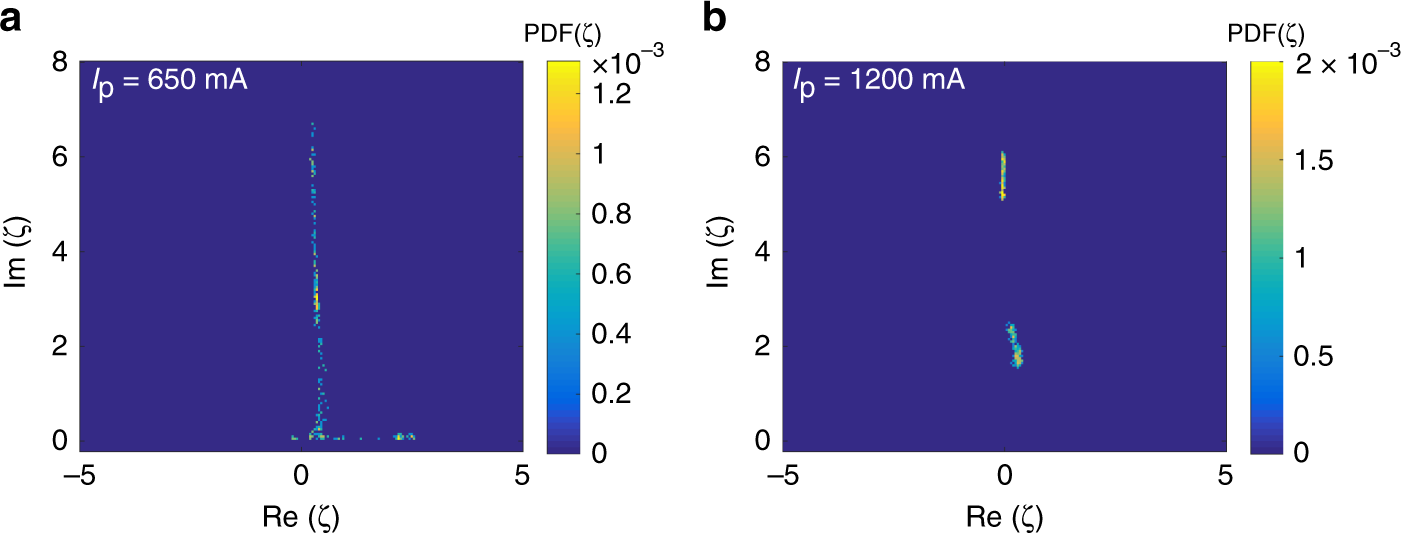

Eigenvalue distribution in the complex plane of spectral parameters—Distribution of the NFT discrete eigenvalues (depicted on a complex plane of nonlinear spectral parameter \(\zeta\)), corresponding to the operational regimes of Fig. 2a, e obtained for an ensemble of 1000 mode-locked pulses. The improved stability of the laser at the higher power is evident from the well-defined localised spots in the distribution of eigenvalues.
