Fig. 3

From: Hydrogen bond guidance and aromatic stacking drive liquid-liquid phase separation of intrinsically disordered histidine-rich peptides

Fig. 3

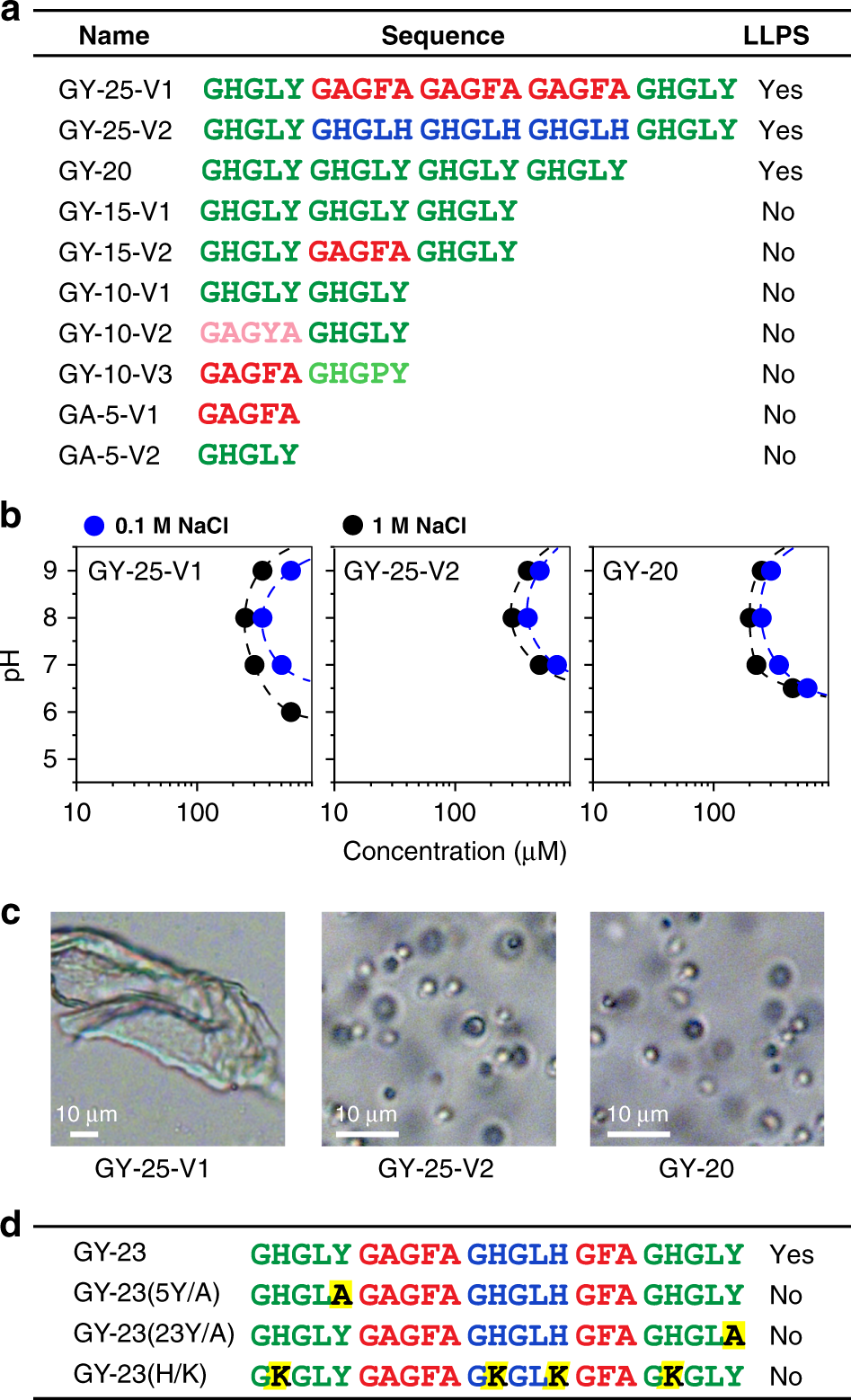

LLPS properties of HBP-1 and -2 derived peptides. a Sequences and their ability to undergo LLPS. b Phase diagrams of the peptides that exhibited LLPS properties. Source data are provided as a Source Data file. c Sample morphology after LLPS by optical microscopy (left micrograph: hydrogel; middle and right micrographs: microdroplets). d Site-directed mutants of GY-23 peptide and their LLPS ability. Color marking of HBP-1 modular repeats is identical to the color-coding described in Fig. 2. All samples were tested in the same conditions in various pH values and salt concentrations.
