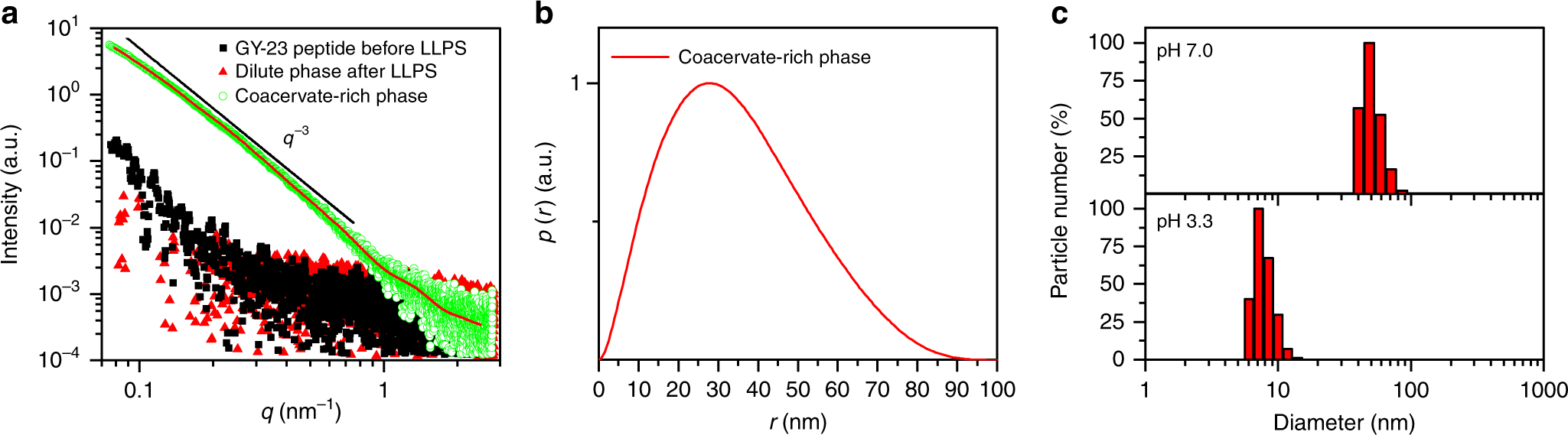

Fig. 5
SAXS and DLS of GY-23 peptide. a SAXS experimental curves of the peptide before and after coacervation. After LLPS, the dilute and coacervate-rich phases were measured following a centrifugation step. The q-3 power-law region of the scattering data is highlighted, with the black line as a guide for the eye. The calculated fit for the peptide assemblies from the IFT method is also presented as a continuous red line. b Corresponding p(r) profile calculated from the SAXS data in (a) using Supplementary Eq. 2. c Hydrodynamic diameter (DH) measured by DLS of GY-23 before (pH 3.3) and after (pH 7.0) coacervation. Correlation functions showing the ‘raw’ data are presented in Supplementary Fig. 14. Source data are provided as a Source Data file.
