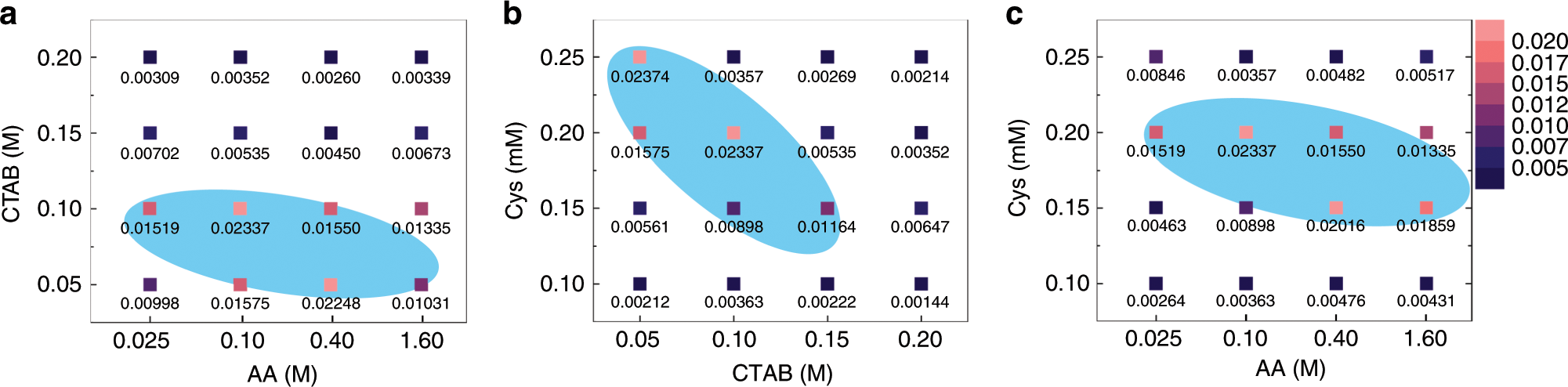

Fig. 5: Effect of the various concentration of cysteine, CTAB, and AA on g-factor.
From: Cysteine-encoded chirality evolution in plasmonic rhombic dodecahedral gold nanoparticles
a–c The g-factors of the synthesized nanoparticles under various concentration combinations of CTAB and AA (a), Cys and CTAB (b), and Cys and AA (c) were plotted. While the two variables changed, the other factor remained the same: a Cys 0.2 mM, b AA 0.1 M, c CTAB 0.1 M were fixed. The maximum g-factor (absolute value) of the synthesized nanoparticles under each condition is displayed with color and value. In the intensity scale on the left, pink represents the strongest and purple represents the weakest g-factor. High g-factor values above 0.01 are highlighted by blue area.
