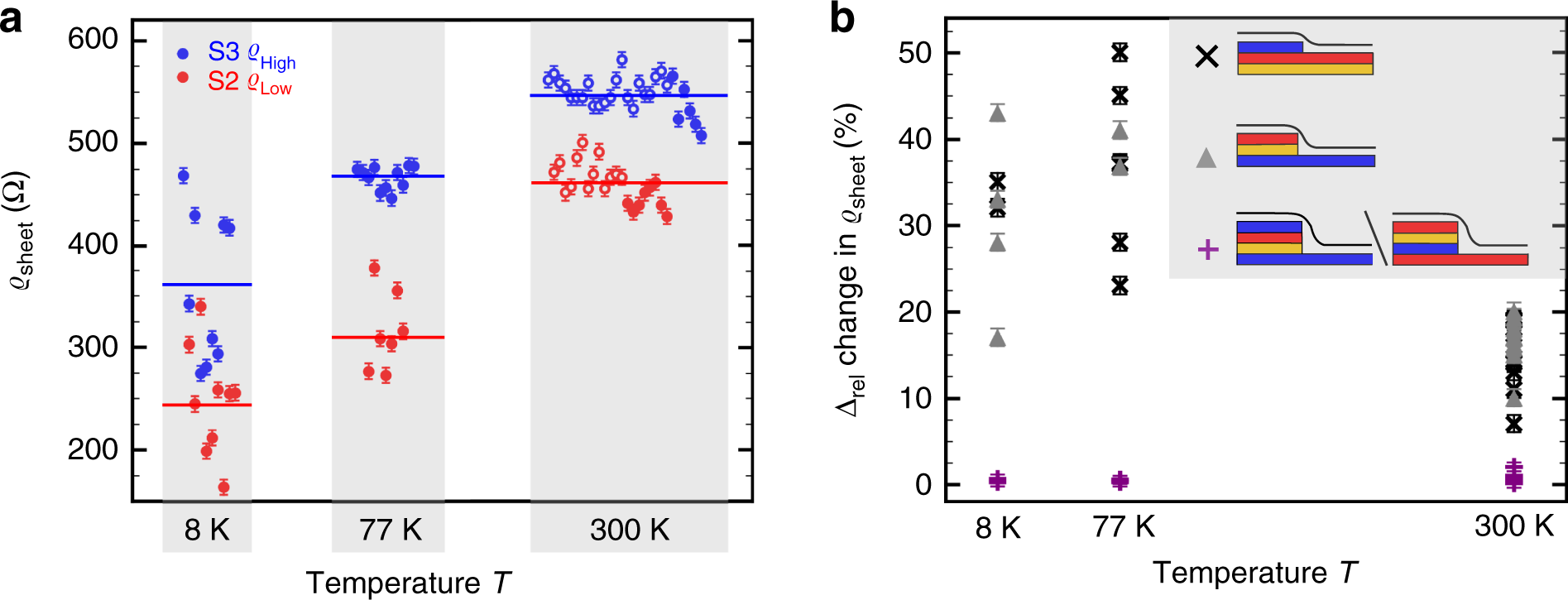

Fig. 2: Temperature-dependence of the sheet resistance.
From: Substrate induced nanoscale resistance variation in epitaxial graphene
a Sheet resistance at 8 K, 77 K, and 300 K acquired on more than 80 terraces for two samples (indicated by open and filled symbols), solid horizontal lines indicate the mean value for a given terrace and temperature. b Change in sheet resistance for adjacent terraces for all three cases S3→S2, S2→S3, and S3→S3/S2→S2 as a function of temperature. Error bars indicate the experimental measurement uncertainty of the individual data points. Source data are provided as a Source Data file.
