Fig. 1: Scalable photonic integrated FPDA signal processor.

From: Photonic integrated field-programmable disk array signal processor

Fig. 1

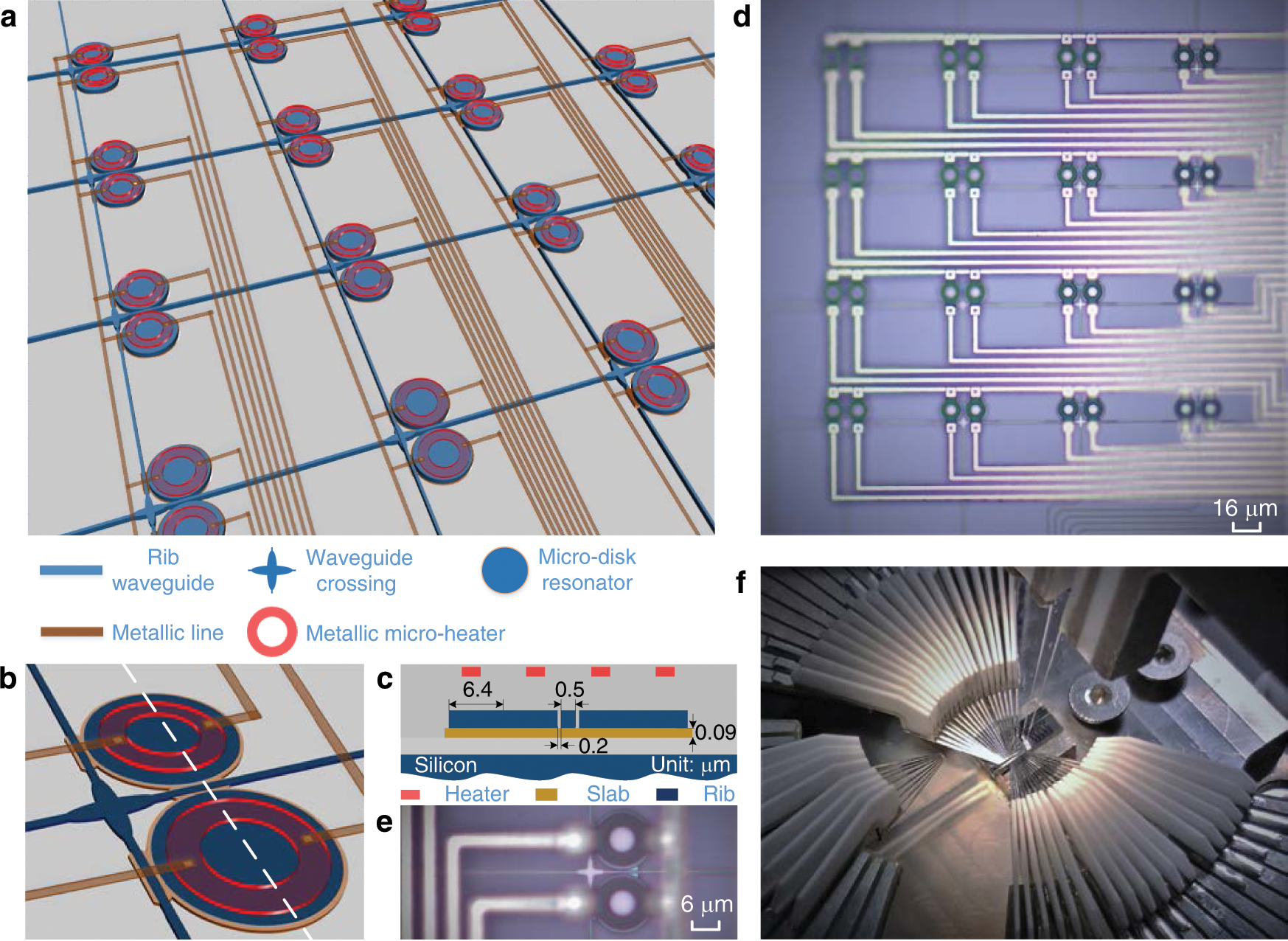

a Schematic layout of the proposed FPDA signal processor. b Zoom-in view of a singe mesh cell. c Cross-sectional view of the planar structure of two disks along the white dash line in b. d Chip prototype of an 8 × 8 FPDA signal processor. e Zoom-in view of a single mesh cell. f Image of the chip characterization set-up.
