Fig. 4: Changes in vertical profiles of soil moisture.
From: Soil structure is an important omission in Earth System Models

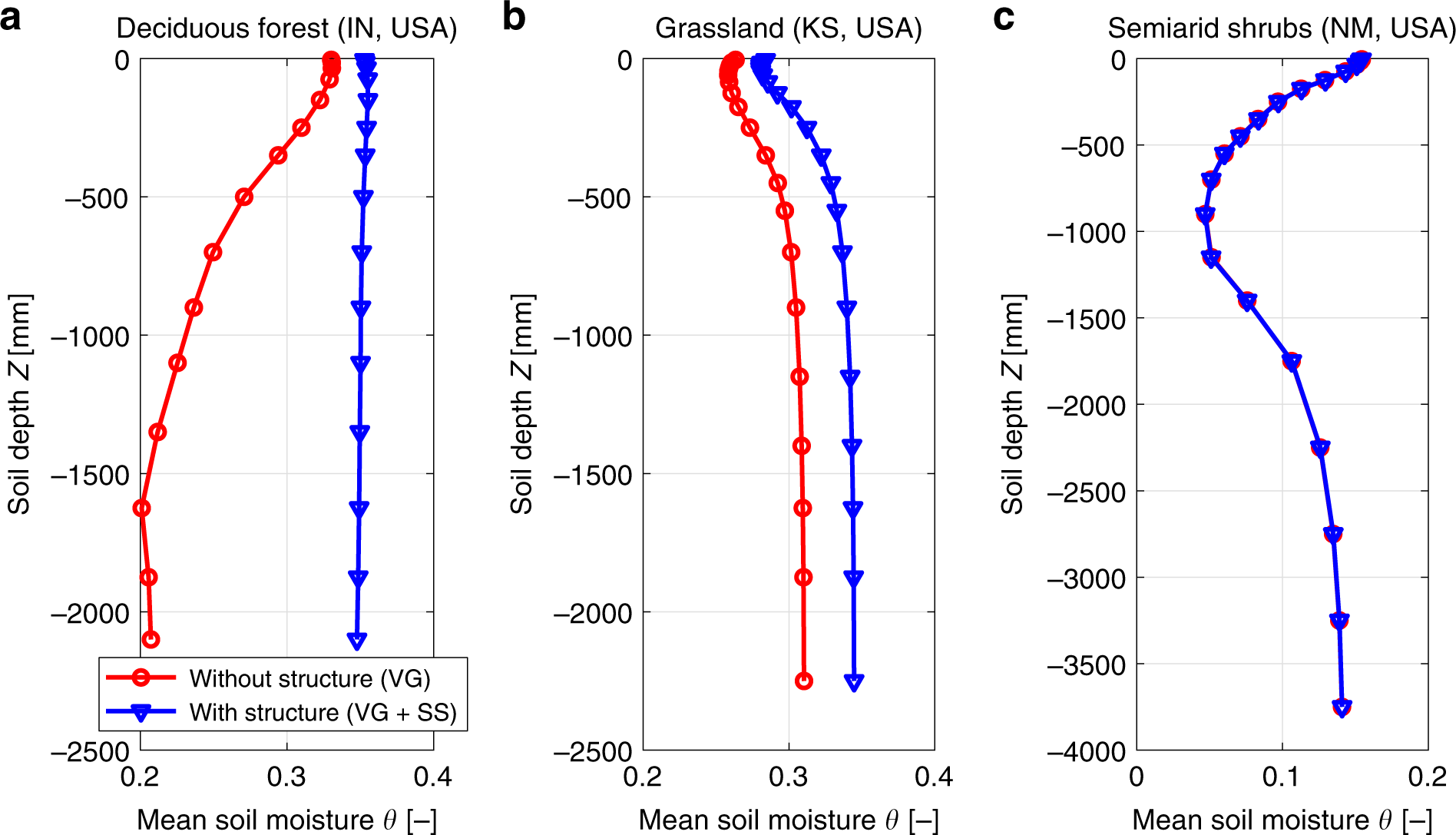

Long-term averaged soil moisture (θ) profile with soil depth for the scenario VG and scenario VG + SS. Results correspond to simulations with T&C at the locations of Morgan Monroe Deciduous Forest (a), Konza Prairie Grassland (b), and Jornada Semi-arid shrub site (c).
