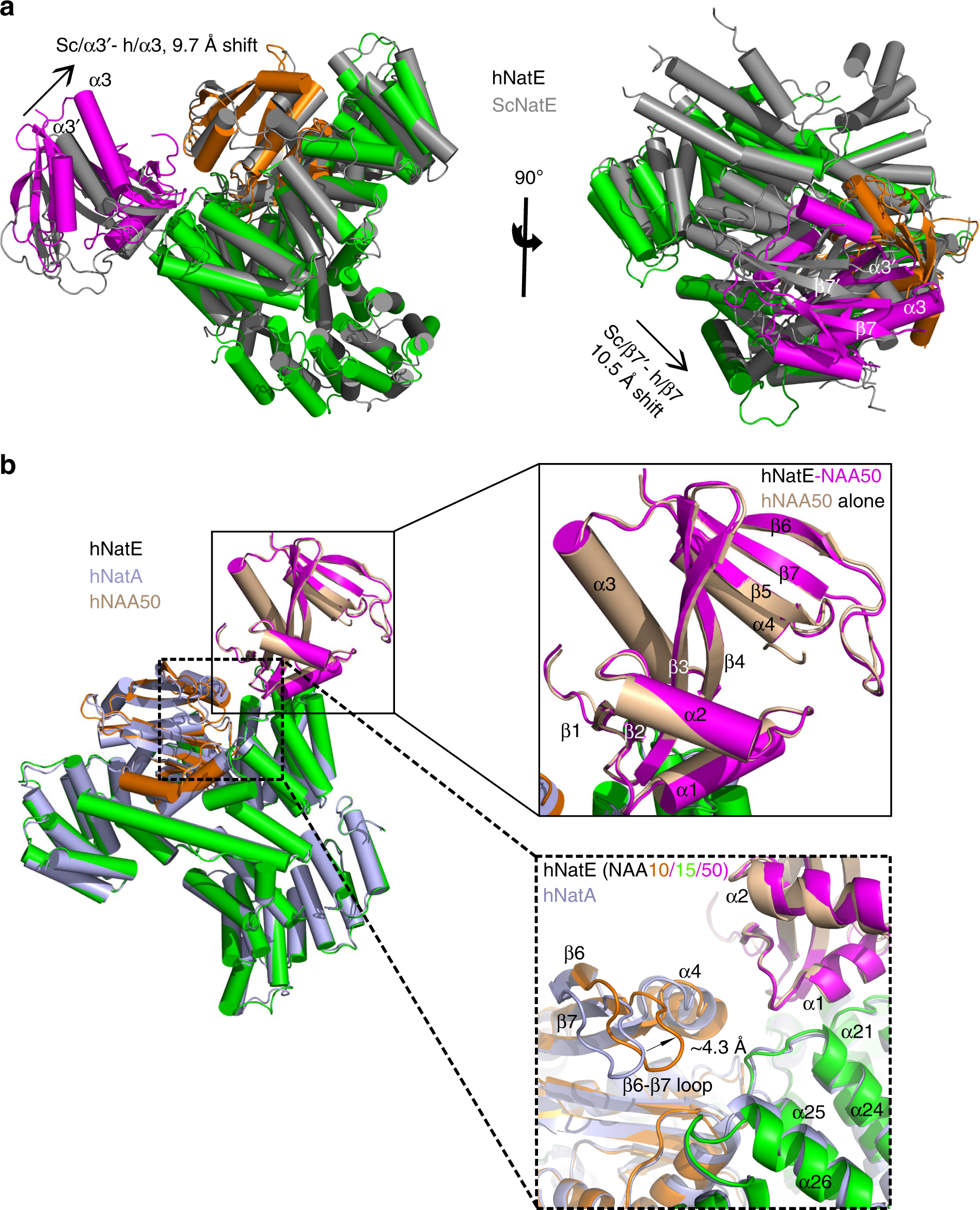

Fig. 5: Subunit crosstalk within the hNatE complex.
From: Molecular basis for N-terminal acetylation by human NatE and its modulation by HYPK
a hNAA50(magenta), hNAA15(green), and hNAA10(orange) within the hNatE complex overlay with ScNatE (gray, PDB: 6O07). The α3 helix and β7 strand of Naa50 is shown to shift toward Naa10 in the human structure (b) hNatE aligned with hNatA (light blue, PDB:6C9M) and hNAA50 (wheat, PDB: 3TFY). The top zoom-in area shows the alignment of free hNAA50 and hNatE. The below zoom-in area shows the hNAA10 conformational change induced by hNAA50 binding.
