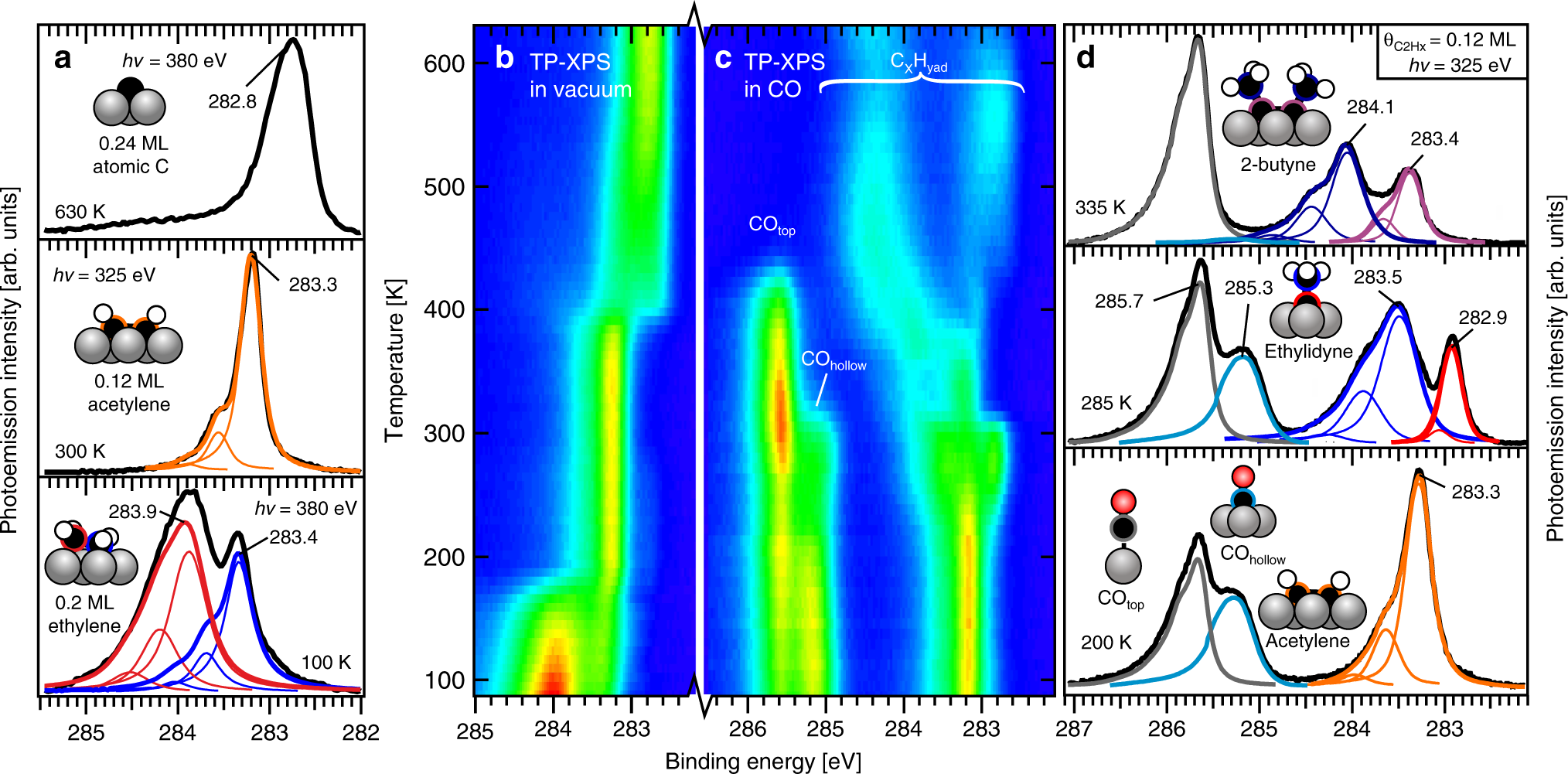

Fig. 1: C1s spectra of CxHy adsorbates at different conditions.

From: Mechanistic insight into carbon-carbon bond formation on cobalt under simulated Fischer-Tropsch synthesis conditions

Fig. 1

a High-resolution spectra after heating ethylene-saturated Co(0001) in vacuum to the indicated temperatures. b Heat map of C1s spectra recorded during heating of ethylene-covered Co(0001) in vacuum. c Heat map during heating of the C2H2ad/2Had-covered surface in the presence of 1 × 10−7 mbar CO (hν = 380 eV, 7 K per spectrum, low intensity = blue, high intensity = red, heating rate 0.2 K s−1). d High-resolution spectra after heating C2H2ad/2Had in CO to the temperatures indicated in the figure.
