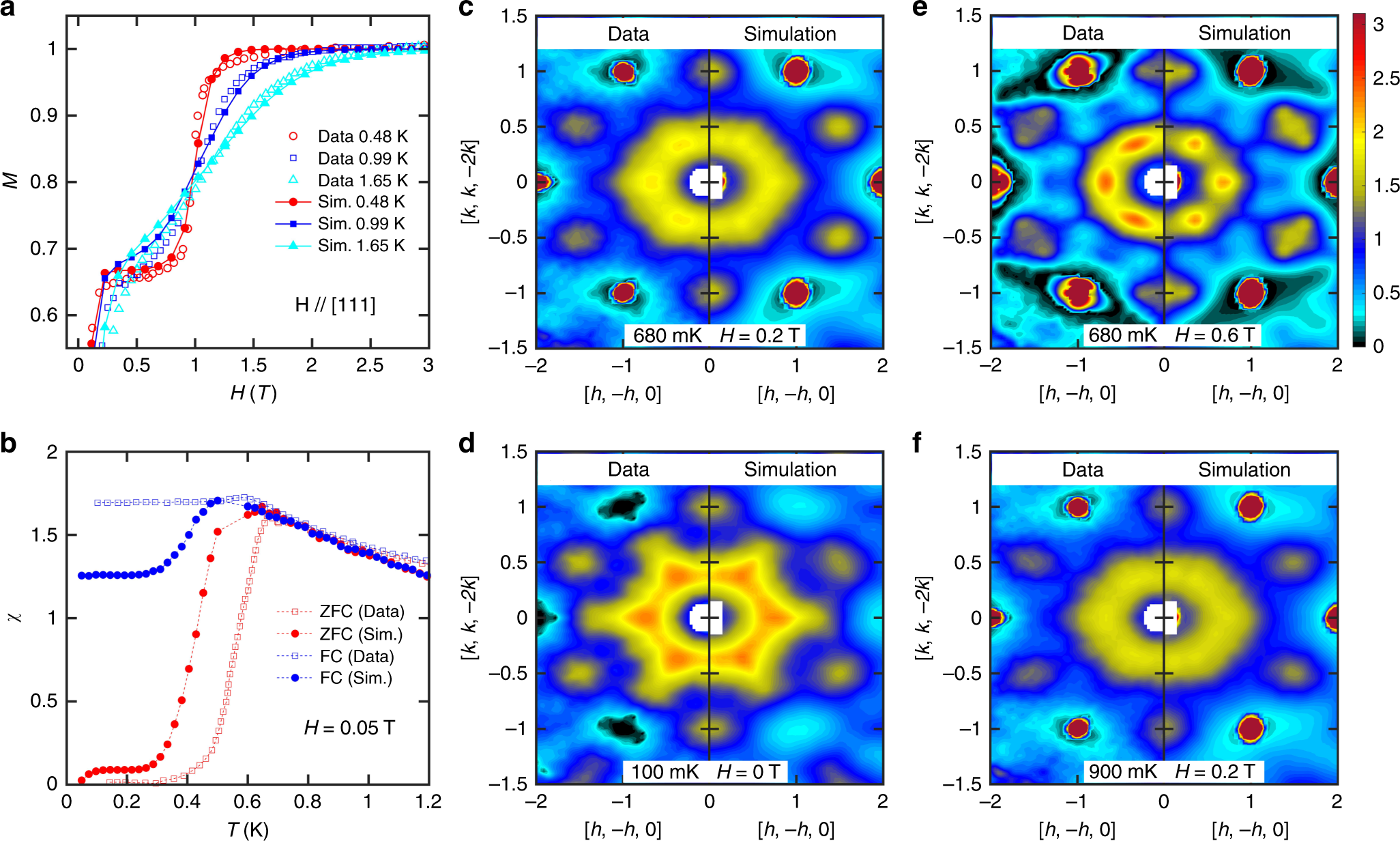

Fig. 5: Validation of the optimal solution over multiple experiments.
From: Machine-learning-assisted insight into spin ice Dy2Ti2O7
a Magnetization as a function of magnetic field and temperature, b zero-field cooled (ZFC) – field cooled (FC) susceptibility, c–f magnetic diffuse scattering measured at different temperature and magnetic field combinations: [680 mK, 0.2 T], [100 mK, 0 T], [680 mK, 0.6 T] and [900 mK, 0.2 T] respectively. All the experiments and simulations shown here are done under magnetic field along the [1,1,1] direction. The magnetization and the ZFC-FC data are extracted from refs. [5,26, respectively.
