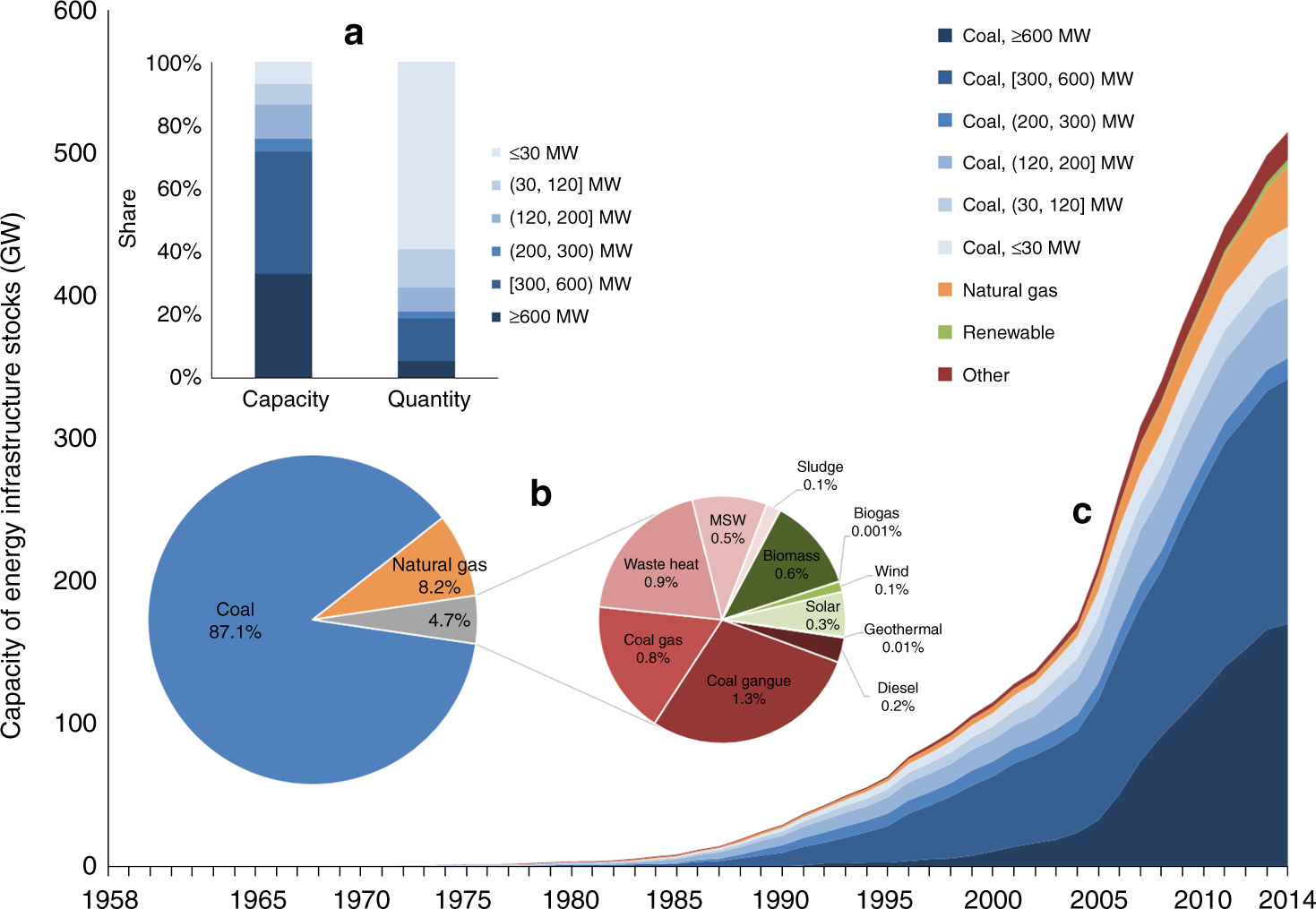

Fig. 1: In-use stocks of energy infrastructure in the 1604 Chinese industrial parks.
From: Managing energy infrastructure to decarbonize industrial parks in China
a The inner bar chart refers to the organization of stocks in terms of the rated capacity and number of units. b The pie chart refers to the fuel structure of stocks. c The stack curve refers to the cumulative capacity of the stocks, which was calculated as the stock in last year + the added capacity in this year—the retired capacity in this year. Source data are provided as a Source Data file.
