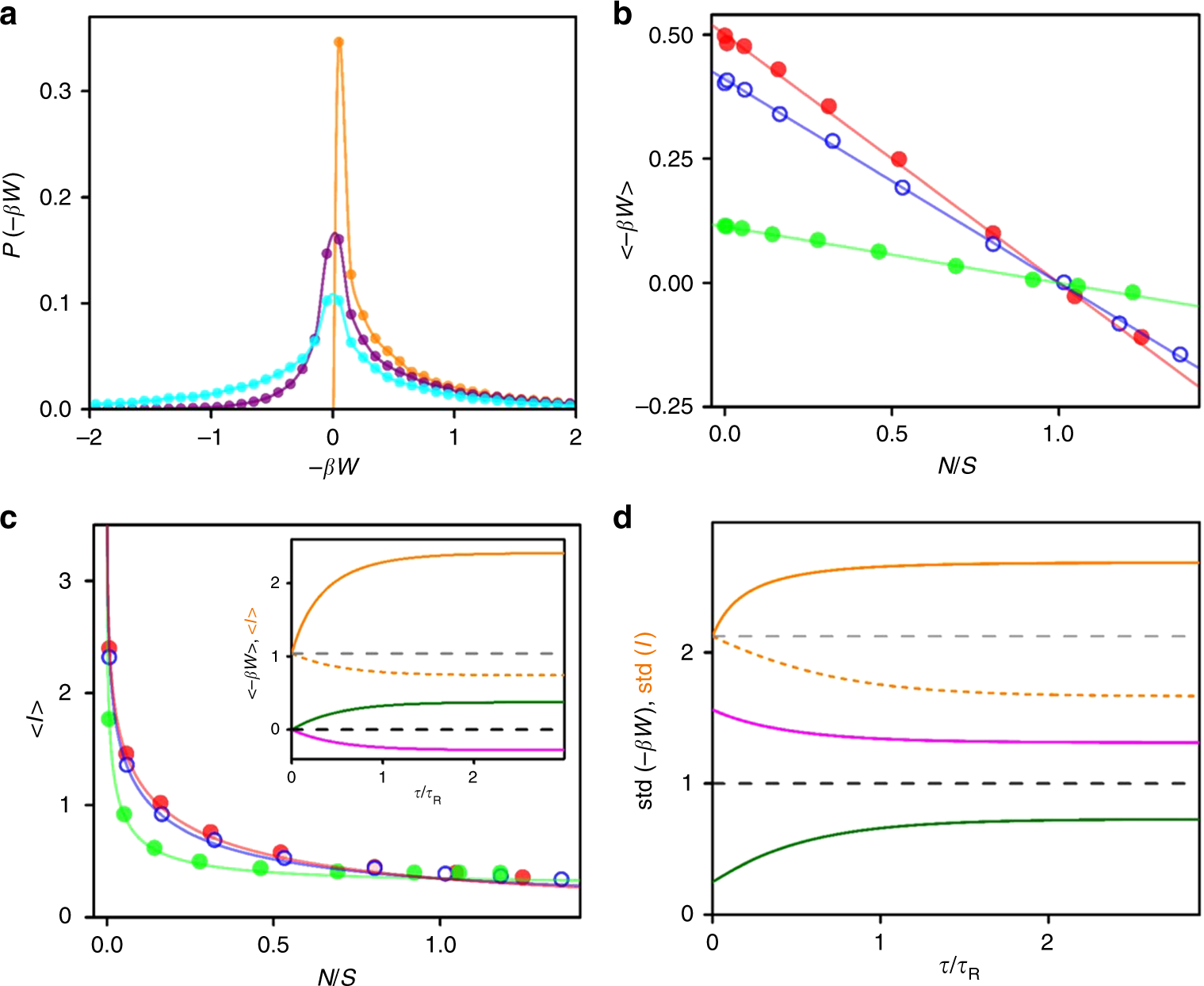

Fig. 3: Measurement of work and mutual information.
From: Efficiency fluctuations and noise induced refrigerator-to-heater transition in information engines
