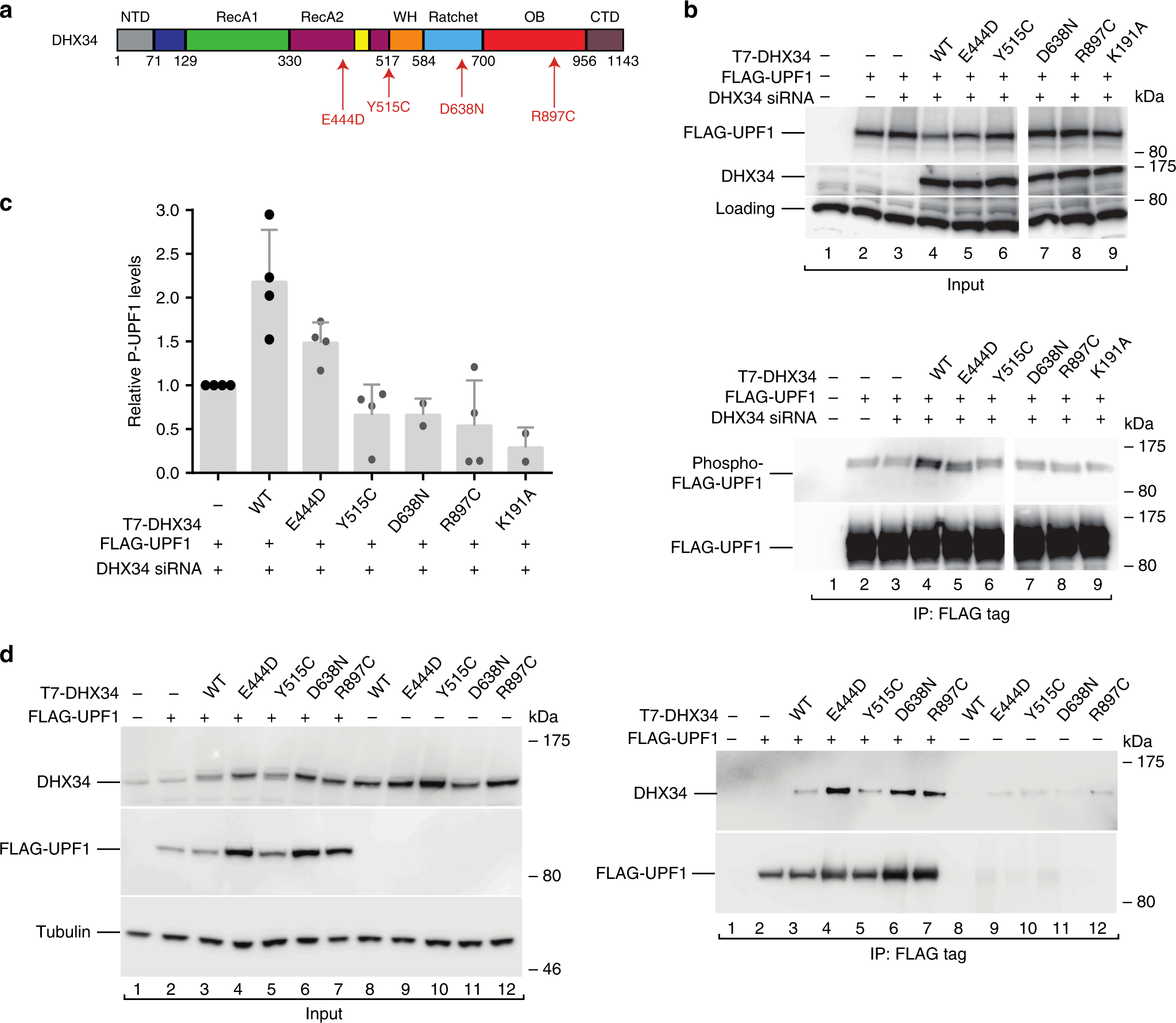

Fig. 4: DHX34 variants fail to phosphorylate UPF1.
From: The complex genetic landscape of familial MDS and AML reveals pathogenic germline variants
a Cartoon depicting the domain structure of DHX34 indicating the position of the reported variants. b HEK293T cells depleted of DHX34 with a specific siRNA or transfected with a scrambled non-targeting siRNA (−) were co-transfected with FLAG-UPF1 and siRNA-resistant wild-type (WT) T7-DHX34 or the indicated DHX34 variants (including an empty vector plasmid (−) as a control on lanes 1–2). The catalytically inactive DHX34 mutant K191A served as a negative control (lane 9). Phosphorylated UPF1 was detected with a phospho-(Ser/Thr) ATM/ATR substrate antibody and the phospho-FLAG-UPF1 signal was normalized to the levels of UPF1 recovered in the IP. Inputs (0.5%) (upper panel) and Anti-FLAG-immunoprecipitates (20%) (lower panel) were probed for the indicated proteins. c Quantification of the western blot signal, as shown in panel b. Mean values ± standard deviations from at least two independent experiments are shown. d Analysis of T7-DHX34 (wild-type protein (WT) and variants) binding to FLAG-UPF1. HEK293T cells were transfected with wild-type T7-DHX34 or DHX34 variants and FLAG-UPF1. Inputs (0.5%) and Anti-T7-immunoprecipitates (20%) were probed for the presence of UPF1. Uncropped western blots are provided as a Source Data file.
