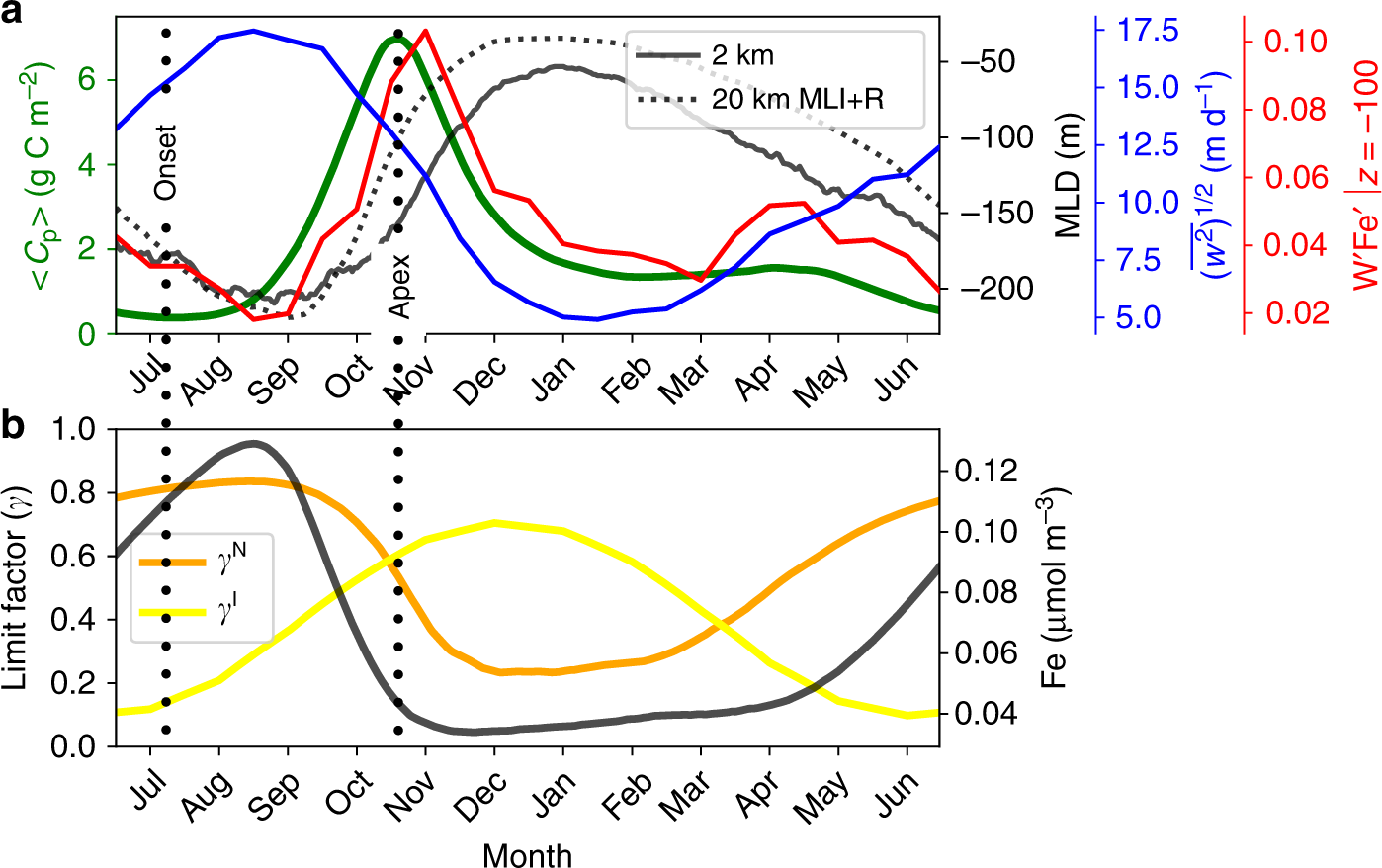

Fig. 2: Time series of the daily-mean vertically integrated phytoplankton biomass (〈Cp〉; green), daily mean of MLD for the 2 km (black solid) and 20 km MLI+R run (black dotted) averaged over the meridional extent of y = 600–1400 km.
From: Vertical eddy iron fluxes support primary production in the open Southern Ocean
a. The seasonal cycle of the root mean square of vertical velocity spatially averaged over the same meridional extent and over 100 m depth from the 2 km run (\({\overline{{w}^{2}}}^{1/2}\)) is shown in blue, and spatially averaged vertical eddy iron flux (\(w^{\prime} \,\text{Fe}\,^{\prime}\) [μmol Fe m−2 d−1]) at 100 m depth in red. b The spatial median over the top 100 m of growth rate limitation factors due to nutrient (γN; orange) and light (γI; yellow) where the former is due to iron year round in our simulation. The iron concentration (Fe) averaged over the top 100 m is plotted in black against the right axis.
