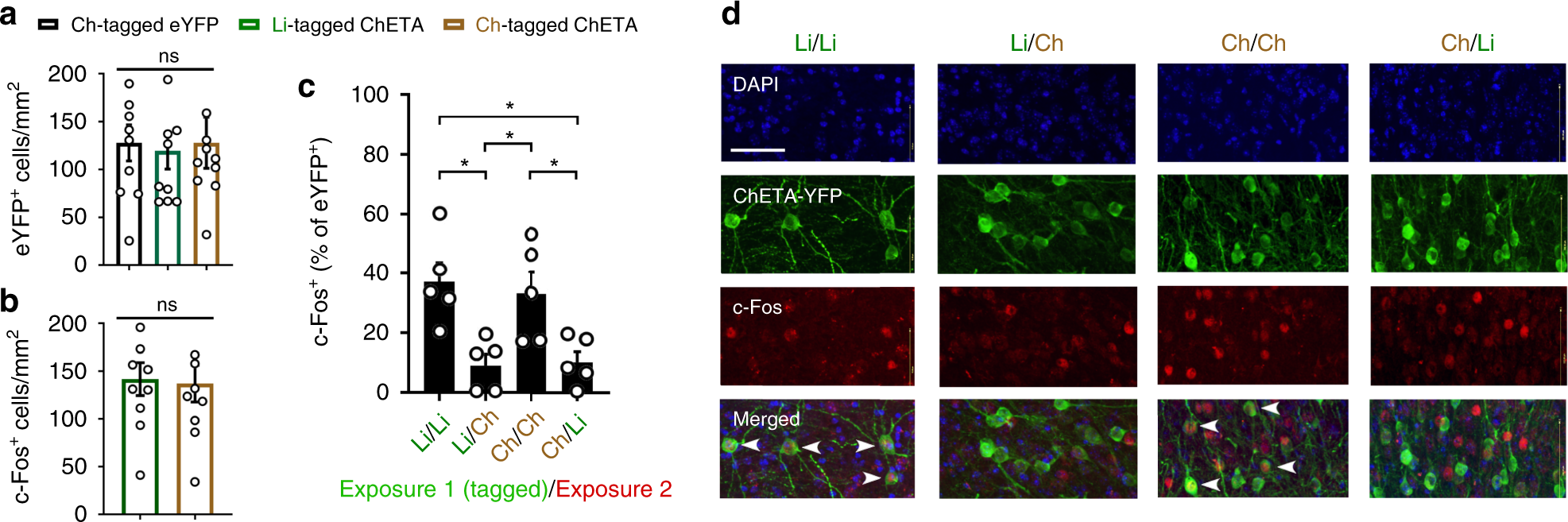

Fig. 3: Long-term reactivation of odour engrams.
From: Olfactory memory representations are stored in the anterior olfactory nucleus
a Quantification of eYFP-labelling across groups [each group, n = 10 mice, one-way ANOVA, F(2, 27)=0.04997, ns, P = 0.9513]. b Medial AON activation as measured using c-Fos density as a proxy [each group, n = 10 mice, two-tailed independent-samples t-test, t(18) = 0.1807, ns, P = 0.8586]. c Reactivation rate of limonene- or chocolate-tagged engrams following exposure to limonene or chocolate odours in their associated contexts, 69 days after initial tagging [each group, n = 5 mice, one-way ANOVA, F(3, 16) = 6.968, **P = 0.0033, significance for multiple comparisons *P < 0.05]. d Representative confocal sections of each experimental condition. Scale bar represents 50 µm. Data are means ± SEM. Source data are provided as a Source Data file.
