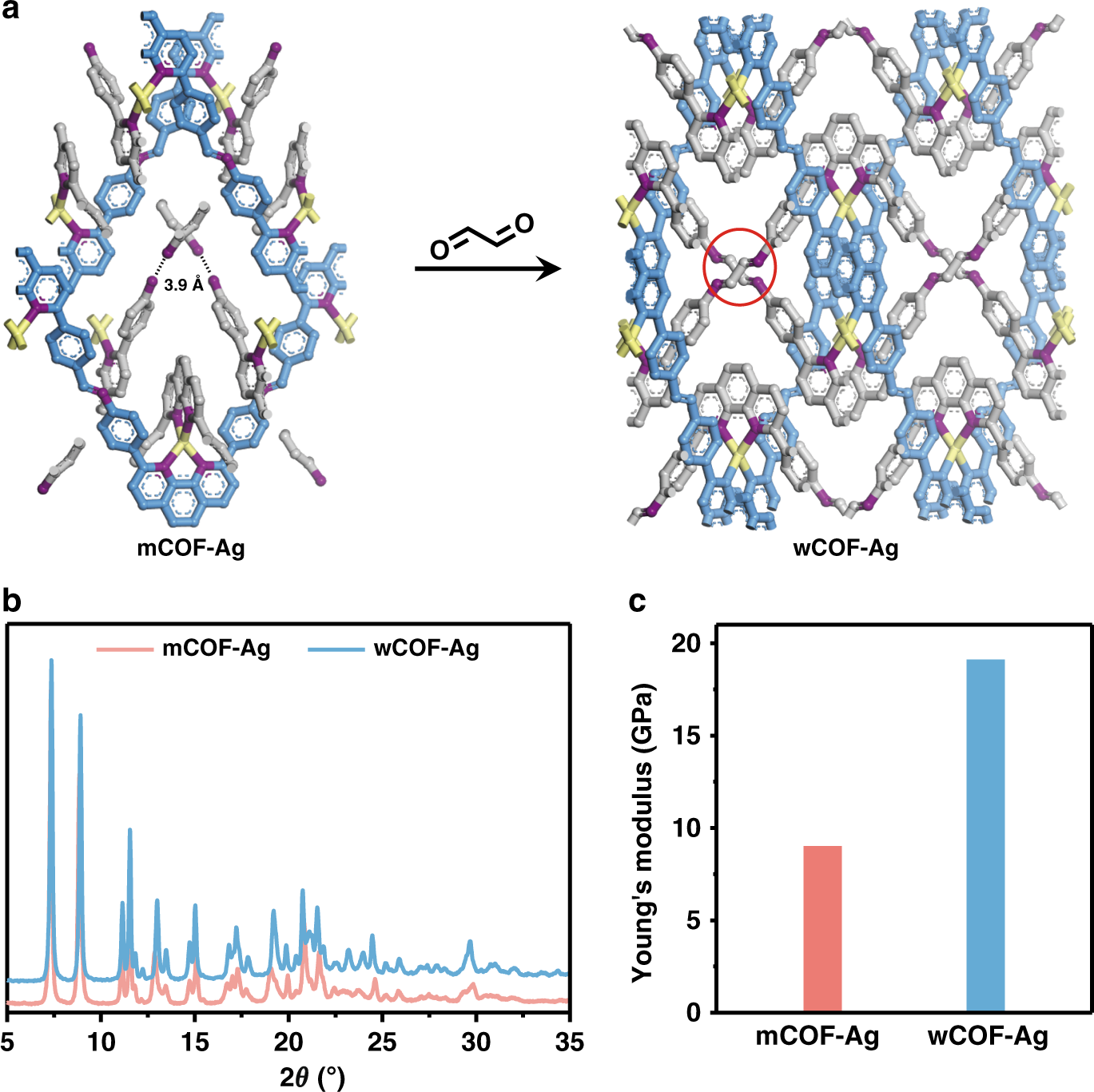

Fig. 4: Crystalline-state polymerisation and characterisation.
From: Single crystal of a one-dimensional metallo-covalent organic framework
a Confined environments of mCOF-Ag (left) and the ideal structure of the cross-linked framework, wCOF-Ag (right). One of the cross-linked parts is highlighted with a red circle. Colour scheme: C on organic chains, blue; C on pendants, grey; N, purple; Ag, yellow. Hydrogen atoms and BF4‾ anions are omitted for clarity. b PXRD patterns of mCOF-Ag and wCOF-Ag. c The Young’s moduli of mCOF-Ag and wCOF-Ag.
