Fig. 4: Impact of the bias voltage on the defect-enabled XMR modes.

From: Defect-implantation for the all-electrical detection of non-collinear spin-textures

Fig. 4: Impact of the bias voltage on the defect-enabled XMR modes.The alternative text for this image may have been generated using AI.

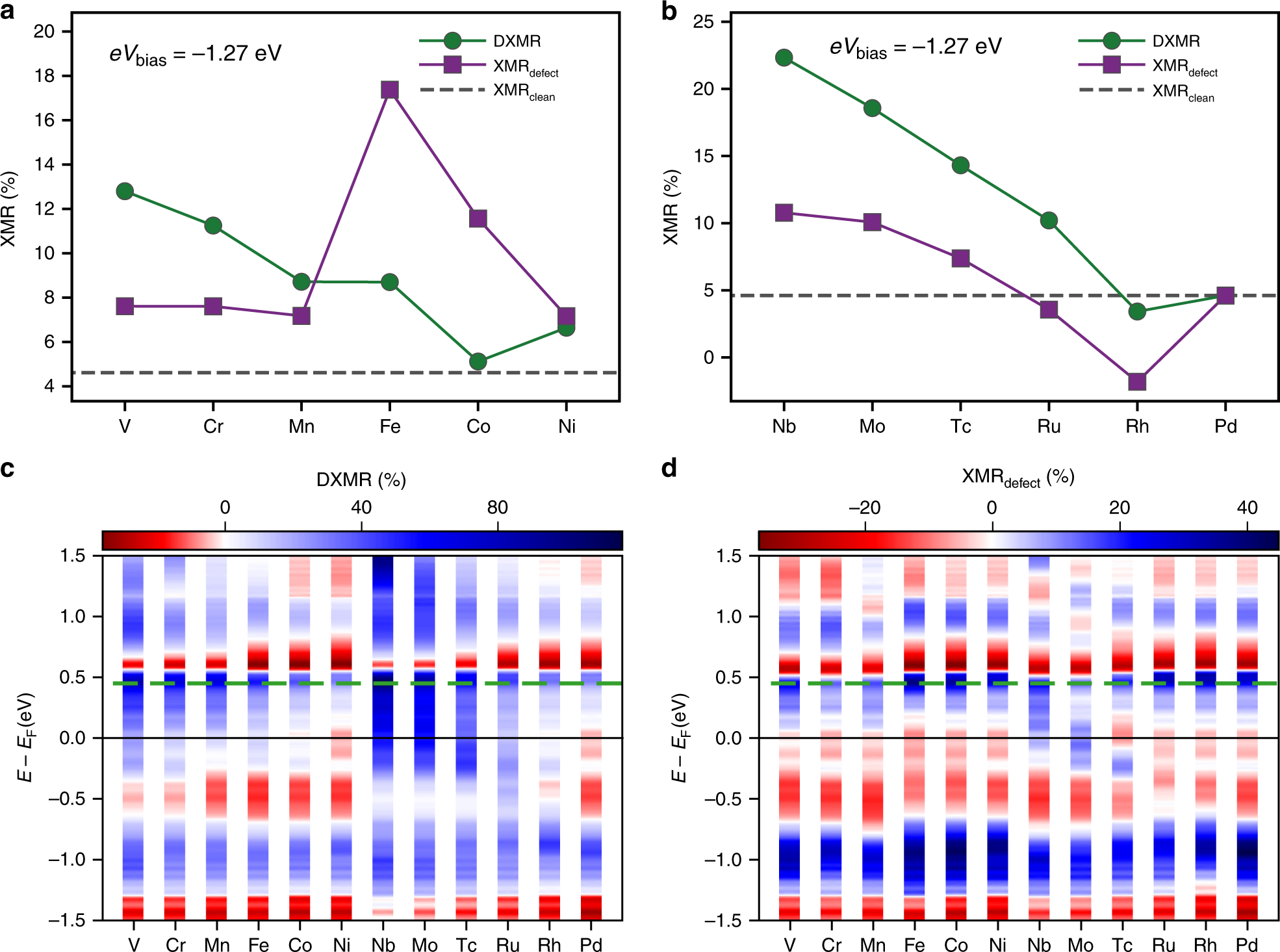

Dependence of the DXMR signal (green circle) and XMRdefect, (purple squares), on the atomic number of the a 3d and b 4d impurities at an injection energy eVbias = −1.27 eV. The gray dashed line indicates the signal of the XMRclean. Bias voltage dependence of the c DXMR and d XMRdefect signal for 3d and 4d defects. The color bars indicate the magnitude of the signal and the dashed green line shows the injection energy eVbias = 0.45 eV studied in Figs. 2 and 3.
