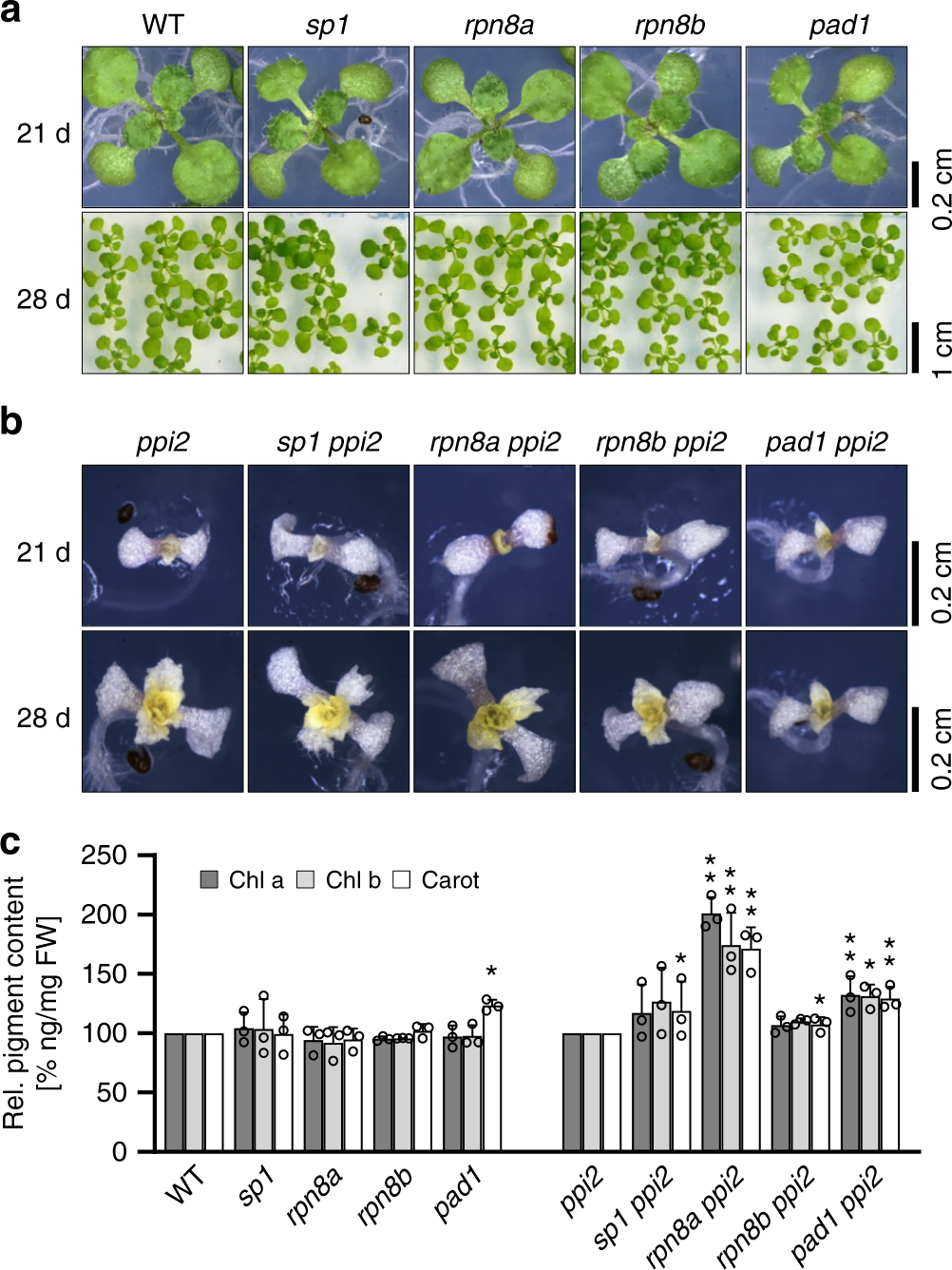

Fig. 1: Characterization of plant growth for the indicated lines.
From: Mild proteasomal stress improves photosynthetic performance in Arabidopsis chloroplasts
a Wildtype (WT), sp1, rpn8a, rpn8b, and pad1 lines and b ppi2, sp1 ppi2, rpn8a ppi2, rpn8b ppi2, and pad1 ppi2 lines were grown for 21 and 28 days under growth light conditions. c Pigment content of four-week-old WT, sp1, rpn8a, rpn8b, pad1, ppi2, sp1 ppi2, rpn8a ppi2, rpn8b ppi2, and pad1 ppi2 plants were determined as described in the Methods section and statistically evaluated (n = 3 × 6 in case of green plants, n = 3 × 30 in case of albino plants). Significant differences are highlighted by one (p-value < 0.05, T-test, two-sided) or two stars (p-value < 0.005, T-test, two-sided) on top of the columns. Error-bars represent SD.
