Fig. 4: Dissociation of S-component from ECF complex.
From: Membrane mediated toppling mechanism of the folate energy coupling factor transporter

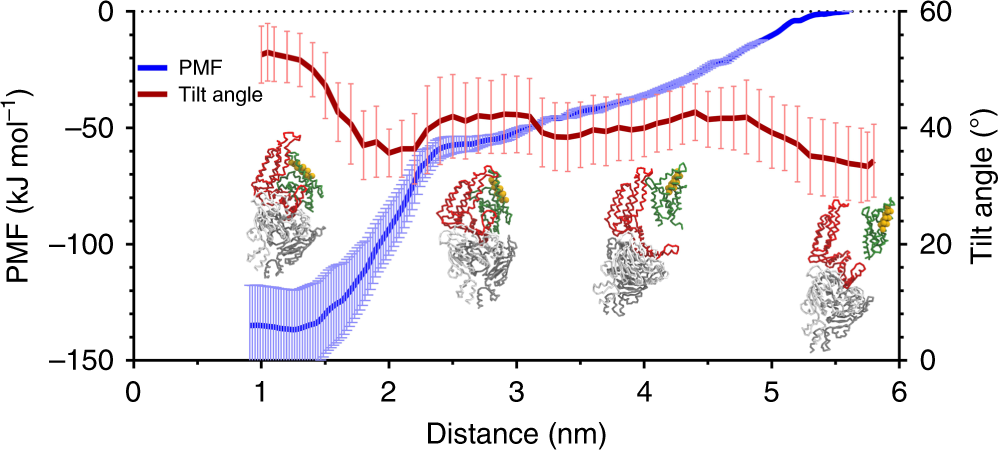

Potential of mean force of ECF module and S-component association (blue). Error bars were computed with bootstrapping. Average tilt angle between helix 5 and the positive z-direction of the simulation box along the dissociation pathway (red). Error bars are standard deviations. Representative snapshots of ECF and S-component along the dissociation pathway are shown. Toppled state is on the left and canonical state is on the right. Color coding is the same as Fig. 1. Helix 5 is highlighted in yellow. Source data are provided as a Source Data file.
