Fig. 1: Benefits vs Costs at regional level.

From: Economic motivation for raising coastal flood defenses in Europe

Fig. 1

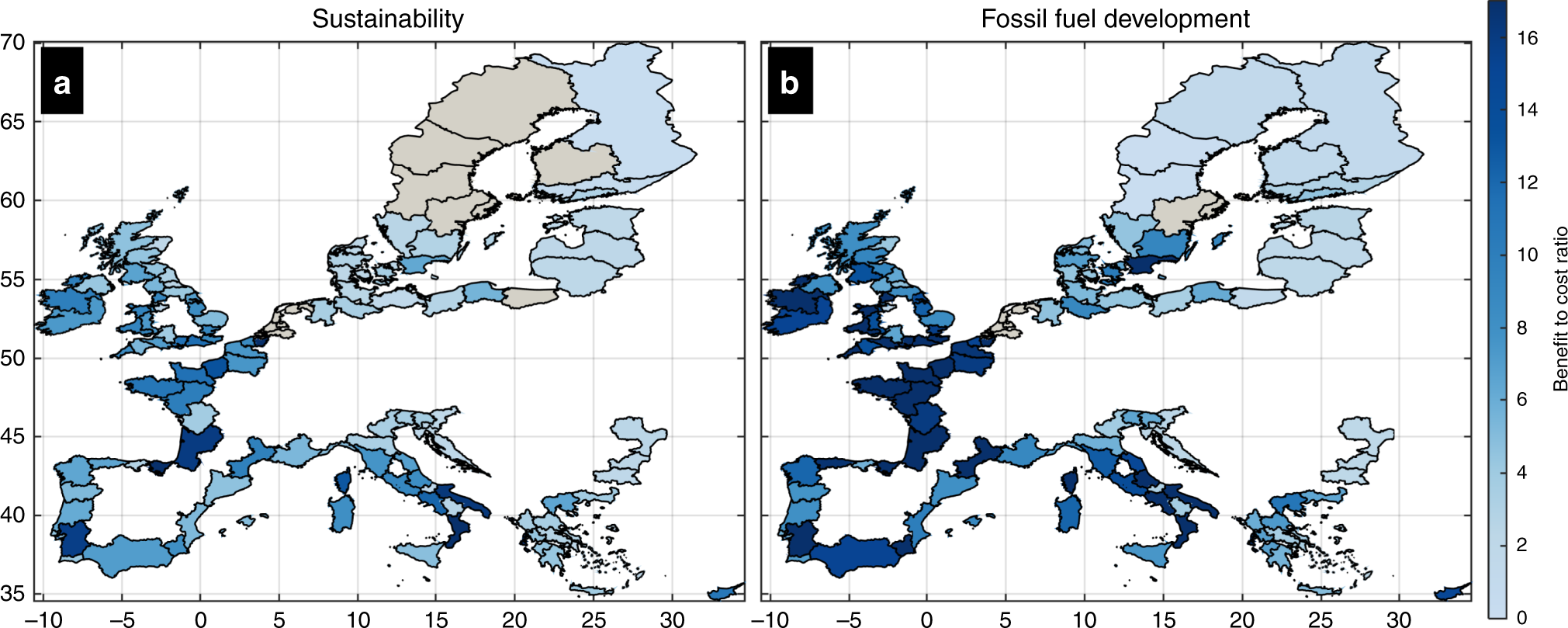

Expected benefit to cost ratios of raising coastal protection per NUTS2 region. Values are shown for two scenarios: Sustainability with RCP4.5 (a) and fossil fuel based development with RCP8.5 (b). Grey colours express areas where the maximum net present value is achieved with the current protection.
