Fig. 1: Structures of the four major side chains of the GAX oligosaccharides in the Coculture Broths.

From: Development of a thermophilic coculture for corn fiber conversion to ethanol

Fig. 1

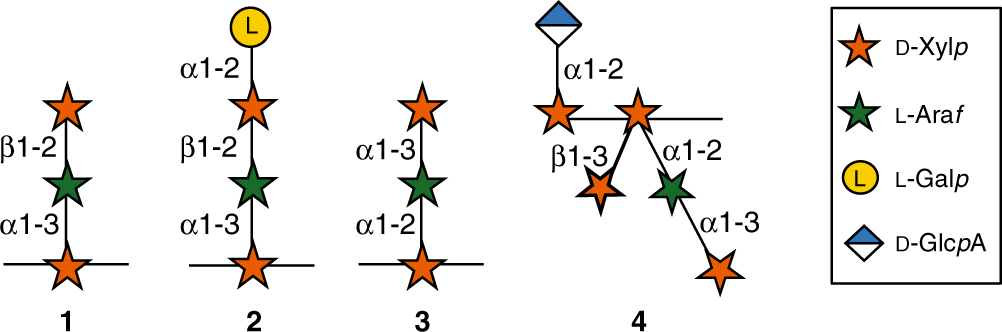

Orange stars: d-Xylopyranose, green stars: l-Arabinofuranose, yellow circles: l-Galactopyranose, blue and white diamonds: d-glucuronic acid. The structures were determined using NMR spectroscopy and MALDI-TOF MS spectrometry. Details of the structural characterization are shown in Supplementary Figs. 1 and 3 and Supplementary Tables 1, 2, and 3.
