Fig. 1: Building blocks and self-assembly.

From: Bidimensional lamellar assembly by coordination of peptidic homopolymers to platinum nanoparticles

Fig. 1: Building blocks and self-assembly.The alternative text for this image may have been generated using AI.

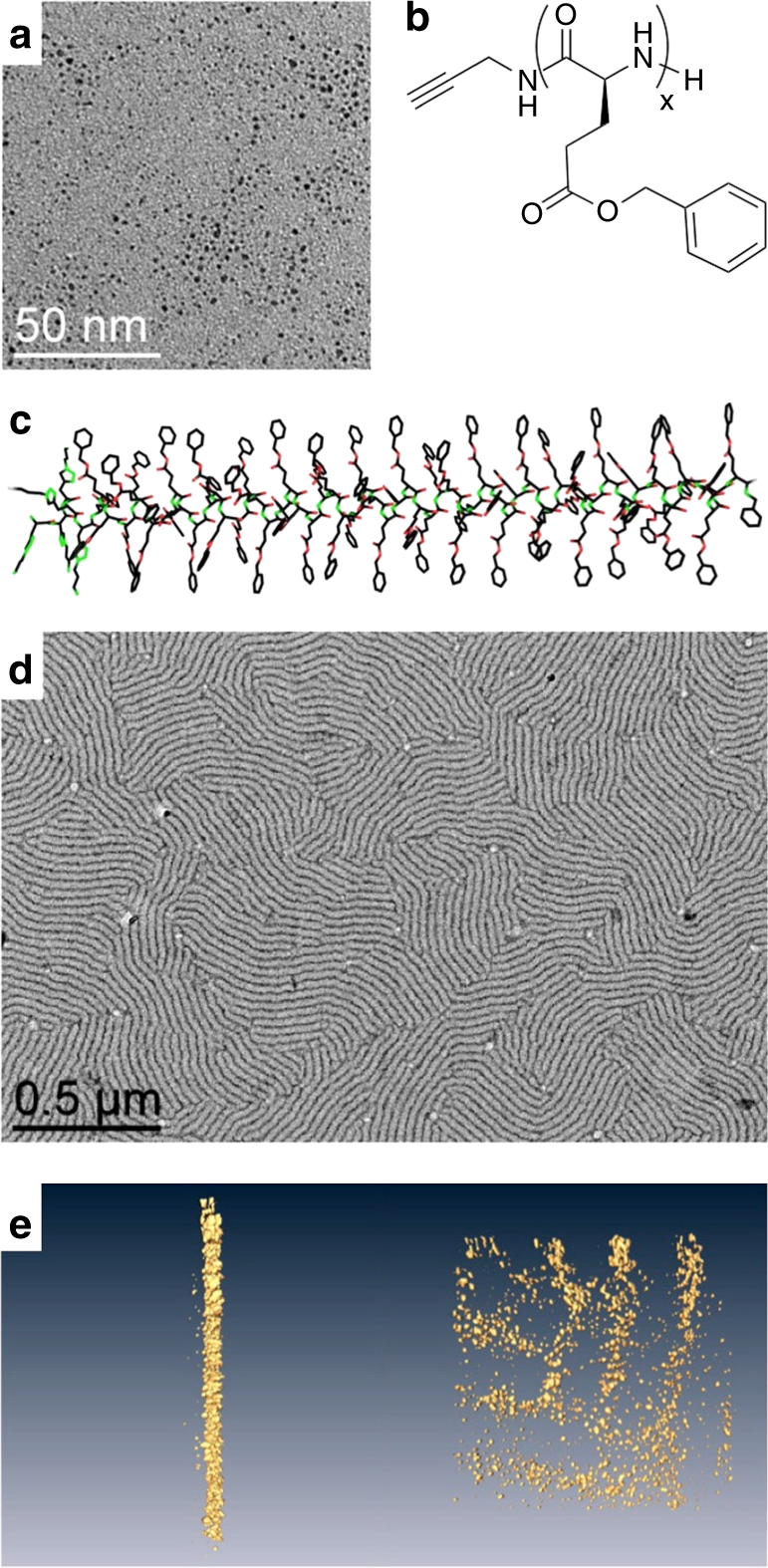

a TEM image of pristine ultra-small platinum nanoparticles of 1.2 ± 0.3 nm. b Chemical structure of PBLG—in the present study, x = 28 (PBLG1), 69 (PBLG2), 120 (PBLG3), 217 (PBLG4), 481 (PBLG5). c Geometrical model of the α-helix conformation of PBLG (example for x = 60). Lamellar structuration of an assembly of platinum nanoparticles with PBLG4 at 0.5 eq.: d Low-magnification TEM image; e, Tomographv 3D reconstruction at two viewing directions: each yellow dot corresponds to an individual nanoparticle.
