Fig. 3: The crystal and electronic structures.
From: Dynamic electrocatalyst with current-driven oxyhydroxide shell for rechargeable zinc-air battery

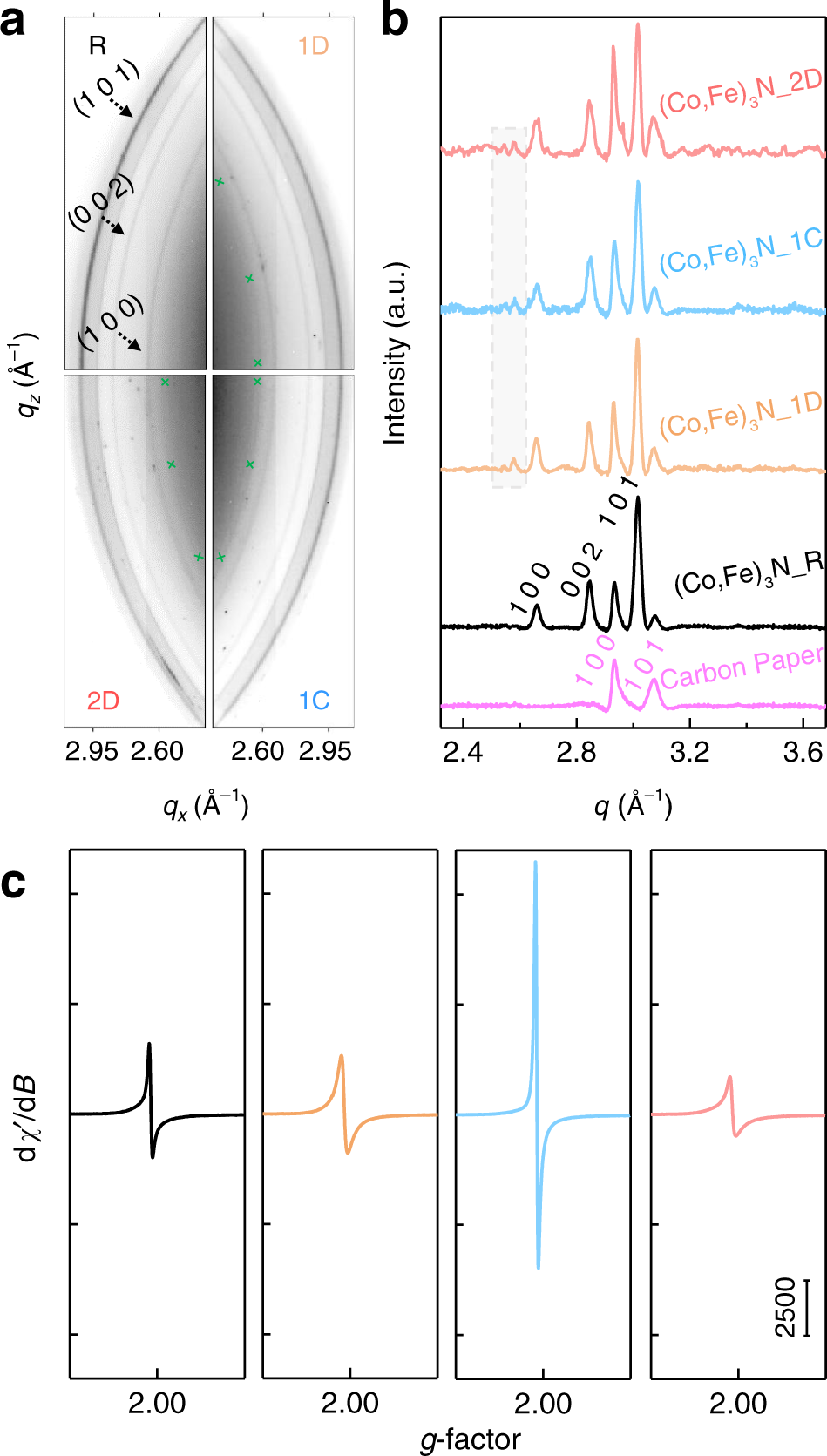

a 2D WAXS images, b integrated SXRD patterns, including blank carbon paper, and c X-band EPR spectroscopies of electrocatalysts obtained at different electrochemical stages.
