Fig. 4: Decoded outcome representation probabilities.
From: Representation of probabilistic outcomes during risky decision-making

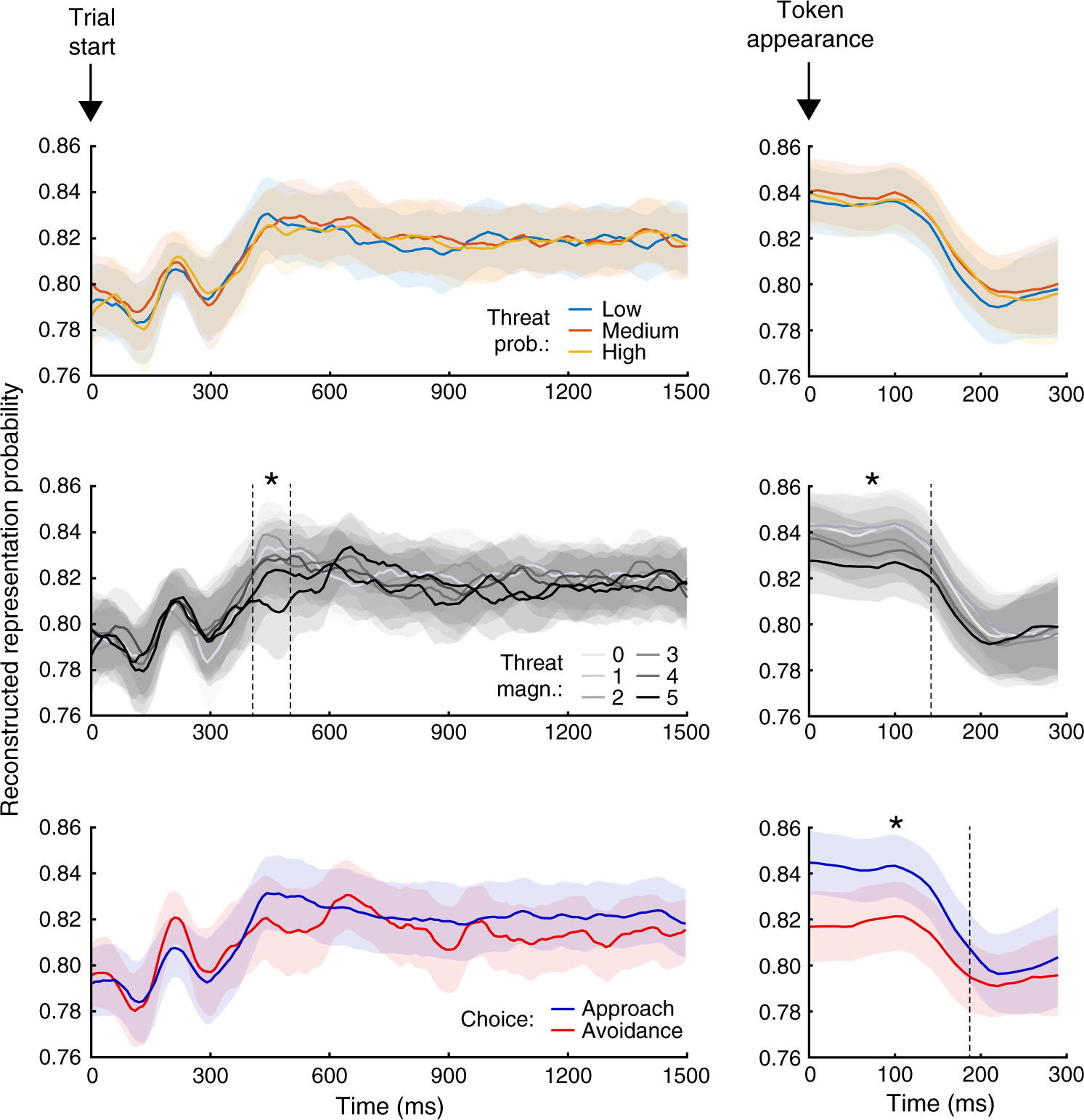

Displayed are the probabilities that the MEG field patterns during deliberation represents the positive outcome (p(Positive); p(Negative) = 1 – p(Positive)), for epochs between 0 and 1500 ms from trial start and between 0 and 300 ms from token appearance (note the different time scales in plots aligned to trial start or token appearance). The shaded areas indicate the s.e.m. of the corresponding probability; Intervals denoted with asterisk (*) illustrate epochs in which the effect of the corresponding manipulation was statistically significant in a cluster-level random permutation test across the entire epoch.
