Fig. 2: Surface and subsurface landslide kinematics.

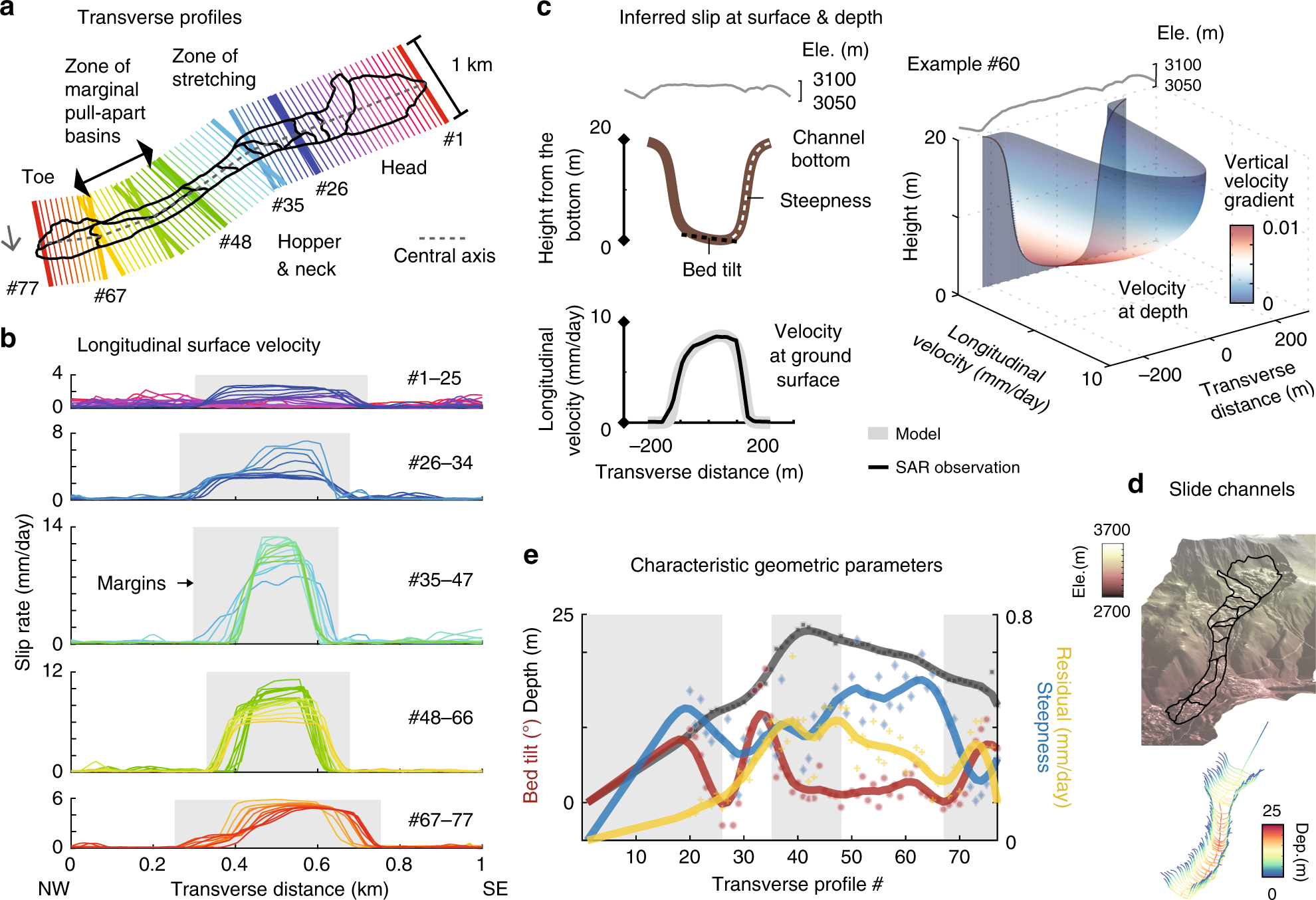

a Transverse profiles from #1 to #77 selected every 50 m and differentiated by colors; the dashed gray line delineates the central axis. b Longitudinal surface velocity from hybrid InSAR-POT analysis of UAVSAR data; colored lines represent 1-km-long profiles in (a); the slip rate for five structural zones is plotted separately with their corresponding profile lines, and the orders of the colored lines are marked to the right; shaded sections are within the lateral margins determined by the velocity profiles. c Example of the inferred channel geometry and slip rates at the surface (compared with SAR results) and subsurface. Geometric steepness and bed tilt are indicated by white and black dashed lines, respectively. d 3D view of landslide surface and the inferred basal morphology. e Changing characteristic geometric parameters along the landslide. Symbols are the individual results for each profile with fitting lines in corresponding colors also used for y-axis labels.
