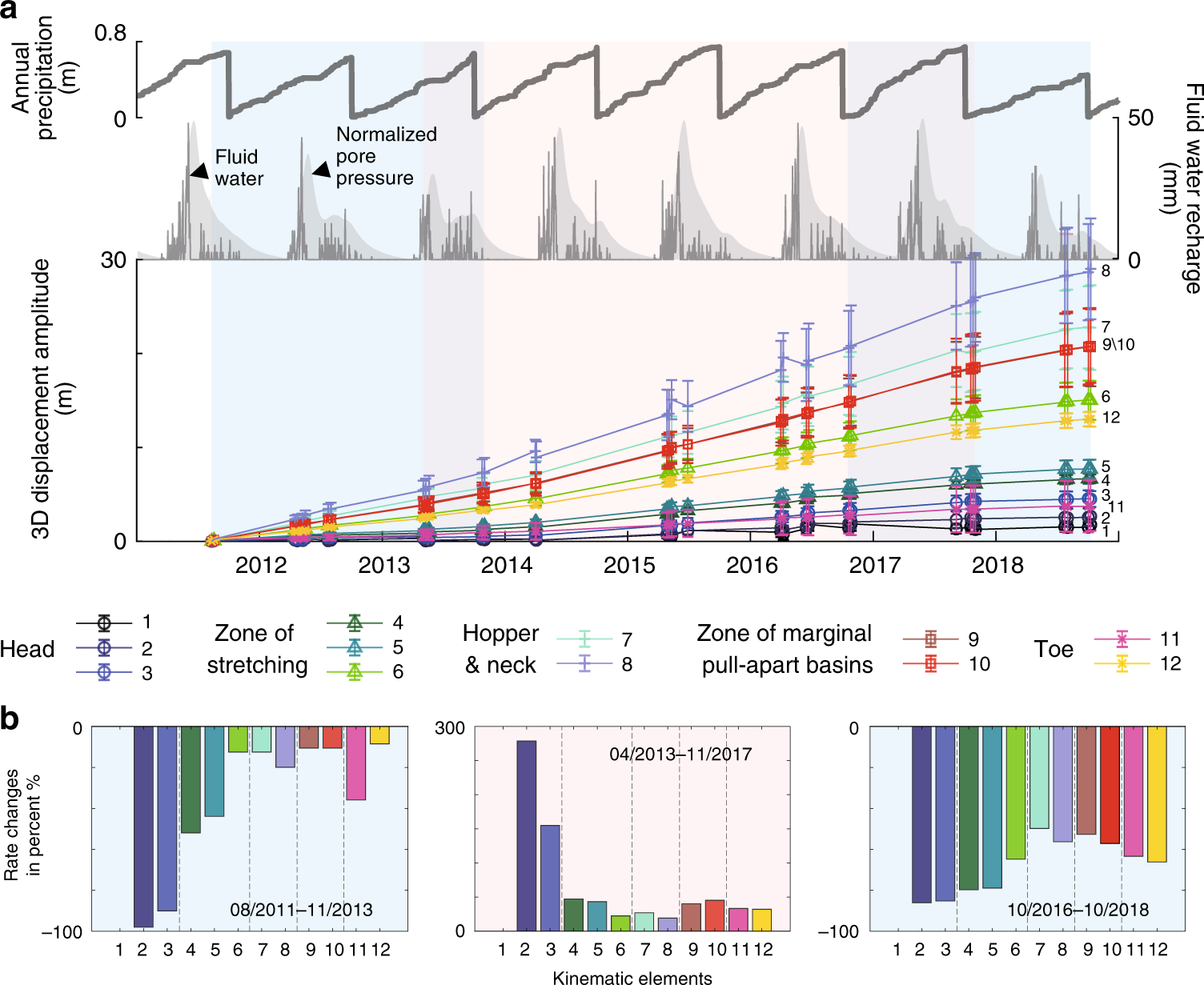

Fig. 5: Multi-annual landslide motions from UAVSAR hybrid InSAR-POT analysis.

a The annual precipitation observations, the estimated water recharge at the surface, and the normalized pore pressure at 20-m depth are shown in gray thick, thin lines and shades, respectively. 3D displacement amplitude for each kinematic element in indicated colors and with number labels to the right (1–12). The error bars represent 1 standard deviation of the cumulative displacements for the targets in each kinematic element. Blue and red shades on the background show the time periods of observed deceleration and acceleration, respectively, consistent with the meteorological data. b Multi-year rate changes in three respective periods for the kinematic elements 1–12.
