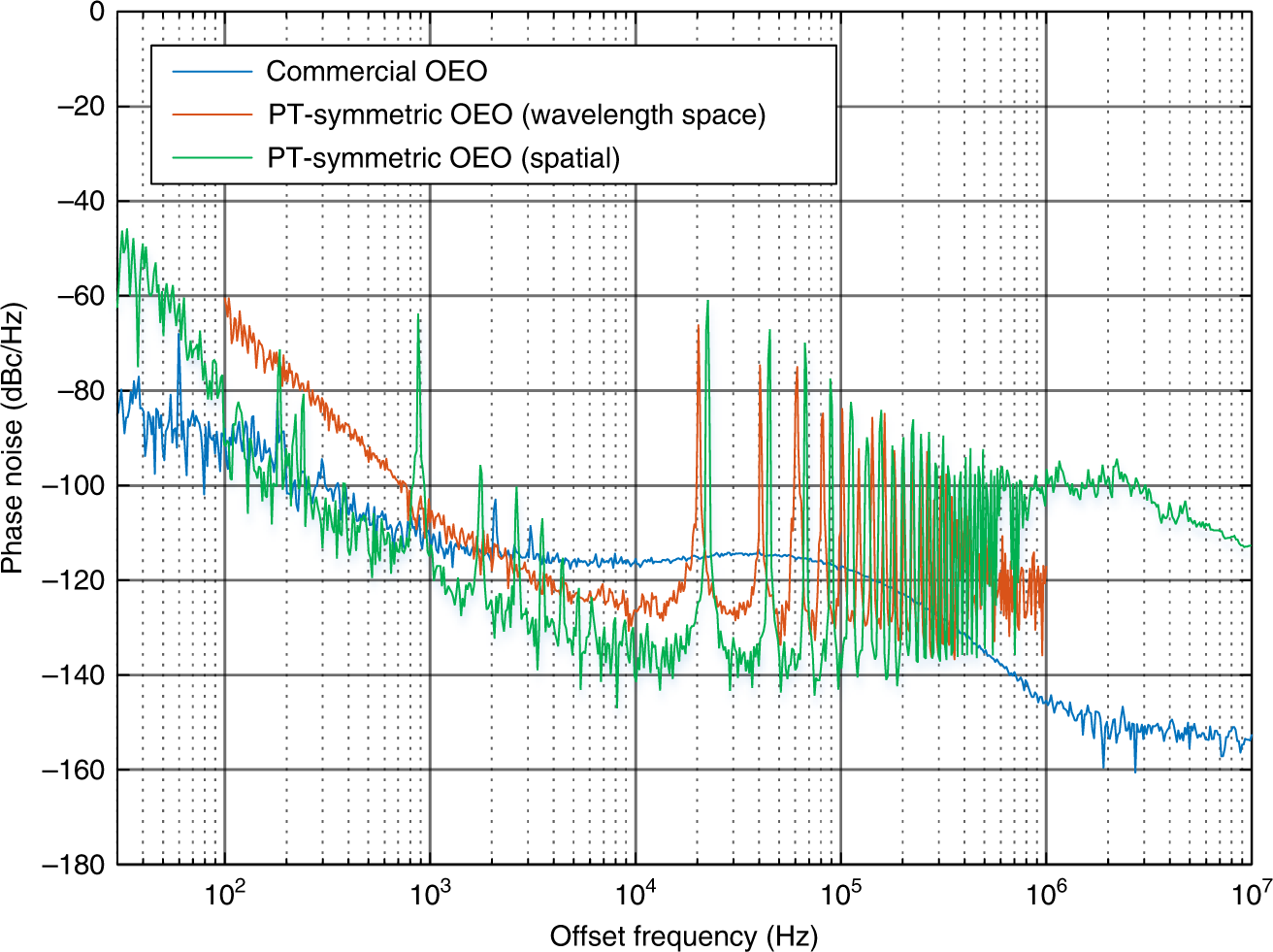

Fig. 5: Measured phase noise of the generated microwave signal (red).
From: Parity-time symmetry in wavelength space within a single spatial resonator
For comparison, the phase noises of microwave signals generated by a commercial microwave source (blue) and a spatially separated dual-loop OEO with a 9.1-km loop length (green) are also shown.
