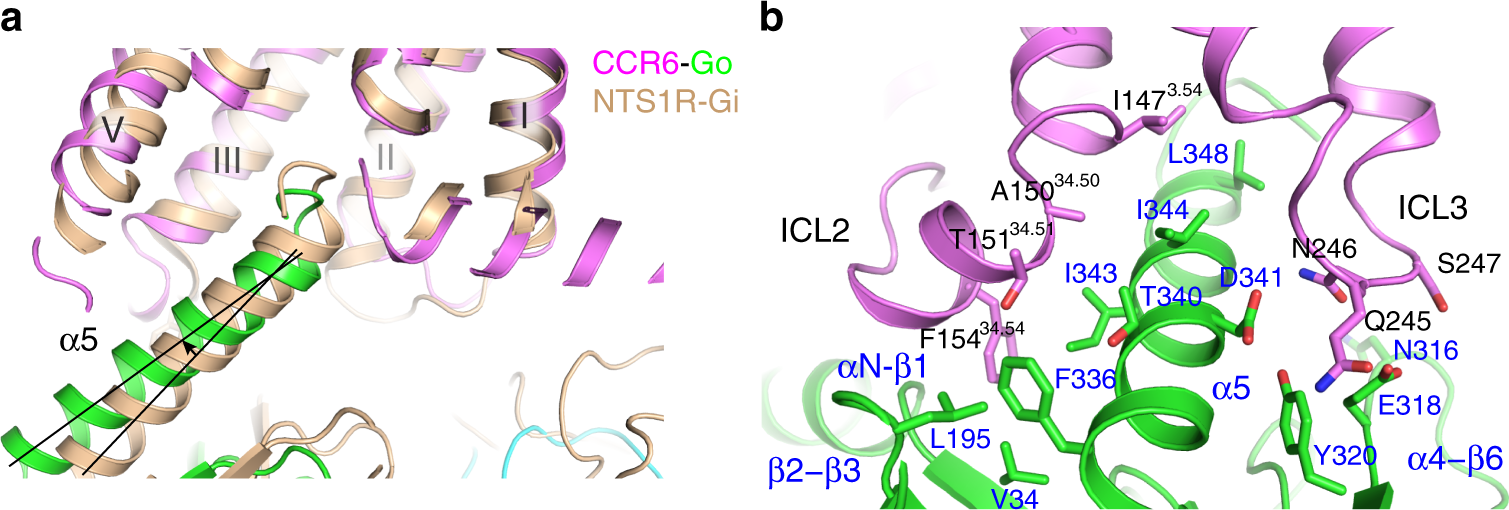

Fig. 4: Interactions between CCR6 and Go.
From: Structural basis for chemokine receptor CCR6 activation by the endogenous protein ligand CCL20
a Comparison of the relative orientation of Go α5 (green) binding to CCR6 (light magenta), and Gi (wheat) binding to NTS1R (wheat). b Interactions between α5 of Go with ICL2 and ICL3 of CCR6. Residues at this interaction interface are shown in stick representation, with CCR6 side-chains labeled in black, and Go side-chains labeled in blue.
