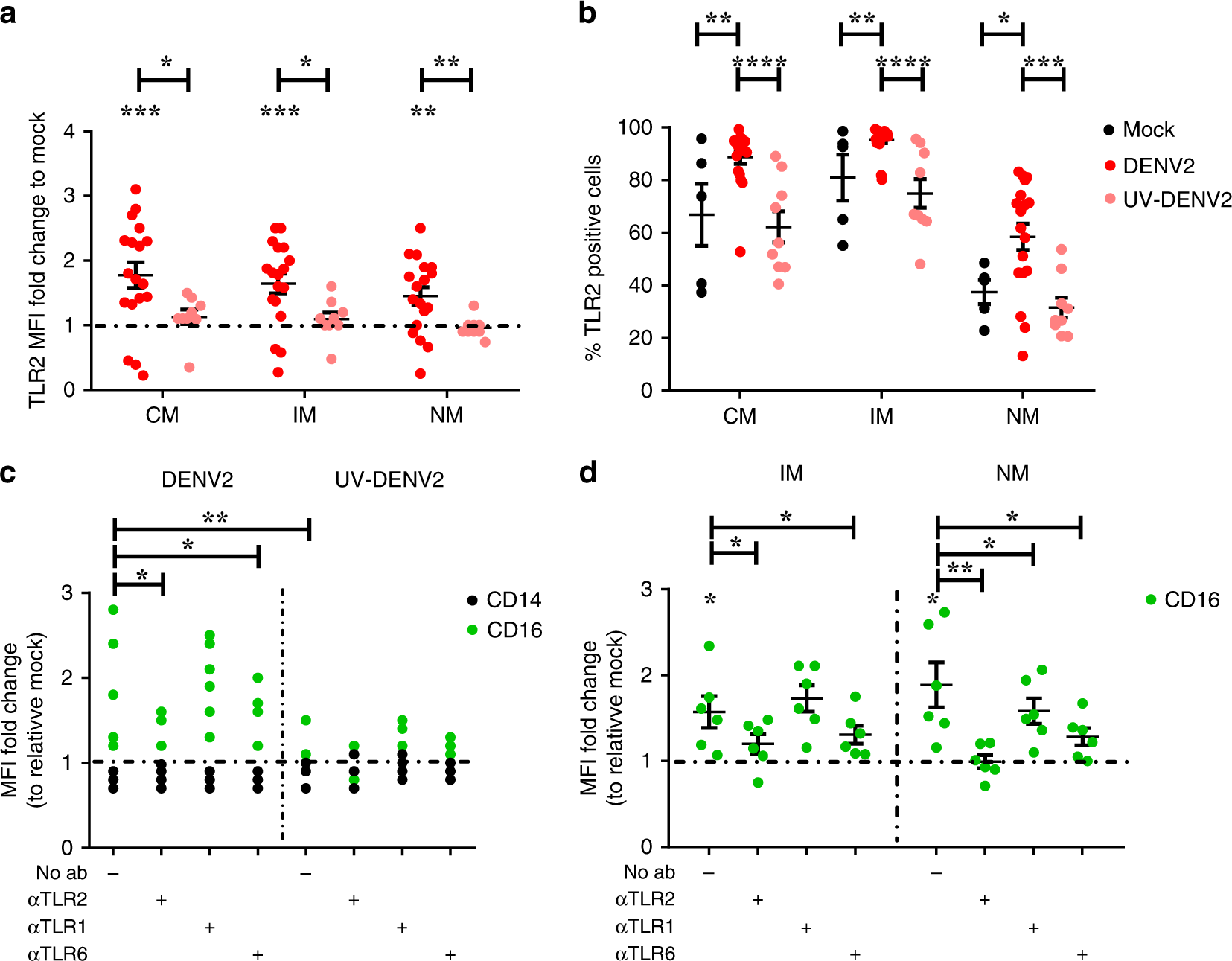

Fig. 3: Active DENV infection upregulates TLR2 and increases CD16 expression in a TLR2/TLR6 dependent manner.

PBMCs from healthy donors were (mock-) treated with αTLR2, αTLR1 and αTLR6 (5 µg/mL) for 2 h prior to infection with DENV2 at MOI of 10 or its UV-inactivated equivalent (UV-DENV2) for 48 h. a MFI of TLR2 expression (n = 5, five different donors and up to 4 different DENV2 preparations, paired one-tailed t test, *P < 0.05; **P < 0.01, ***P < 0.001) and b Percenatge of TLR2-positive cells within each of monocytes subset (n = 5, five different donors and up to four different DENV2 preparations, paired one-tailed t test, *P < 0.05; **P < 0.01, ***P < 0.001, ****P < 0.0001). c CD14 and CD16 expression were detected for total monocytes in blocking and non-blocking condition (n = 2, two different donors and three different viral preparations, paired one-tailed t test, *P < 0.05; **P < 0.01) and d per monocyte subset (n = 2, two different donors and three different viral preparations, paired one-tailed t test, *P < 0.05; **P < 0.01). CM classical monocytes, IM intermediate monocytes and NM: non-classical monocytes. Data represented as fold-changes in MFI relative to the respective mock or as a percentage of positive cells of the respective marker. Bars represent mean ± SEM. Source data are provided as a Source data file.
