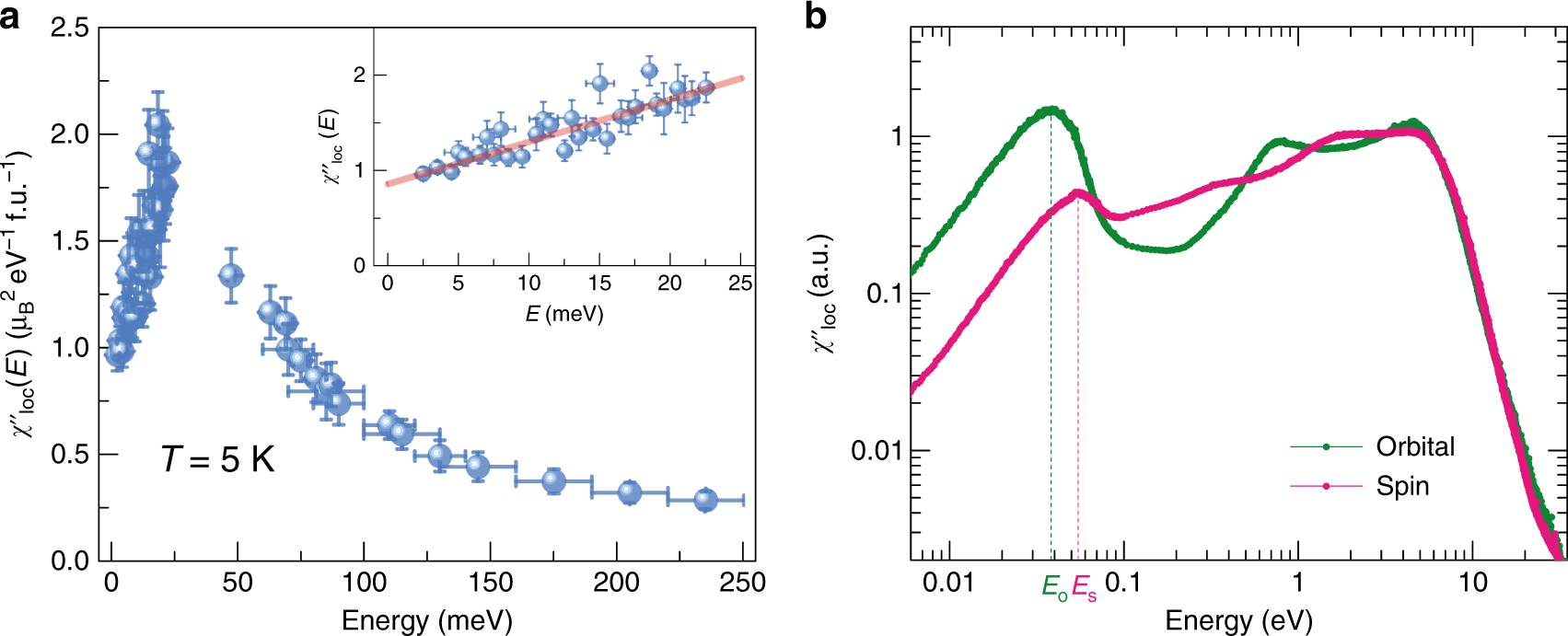

Fig. 4: Local susceptibilities for MnSi.
From: Unconventional Hund metal in a weak itinerant ferromagnet
a Local magnetic susceptibility determined via inelastic neutron scattering data plotted as a function of energy. The inset shows the low-energy region (below 25 meV) and the linear dependence well below the peak near 30 meV. b Local Mn susceptibility calculated via DFT+DMFT calculations for both orbital (green line) and spin (maroon line). Vertical dashed lines mark peaks above which coherence is lost in both the orbital and spin sectors. Error bars represent one standard deviation of the data.
