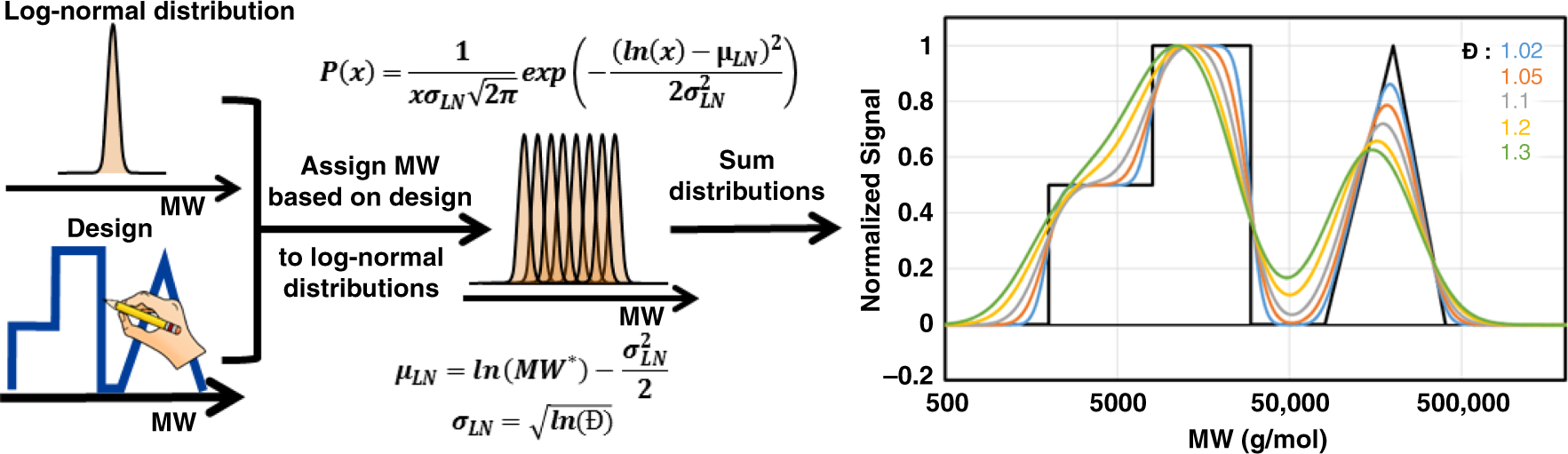

Fig. 8: Overview of mathematical model for the prediction of MWD.
From: General route to design polymer molecular weight distributions through flow chemistry
The mathematical model inputs the MWD design and generates a large number of log-normal polymer distributions with different MW which are summed to produce the predicted MWD. The is used to study the effect of dispersity on the final MWD. (P(x): log-normal probability density function, x: MW scale; μ: mean of log-normal distribution; σ: standard deviation of log-normal distribution; MW*: linear spaced by weight fraction MW from targeted MWD design).
