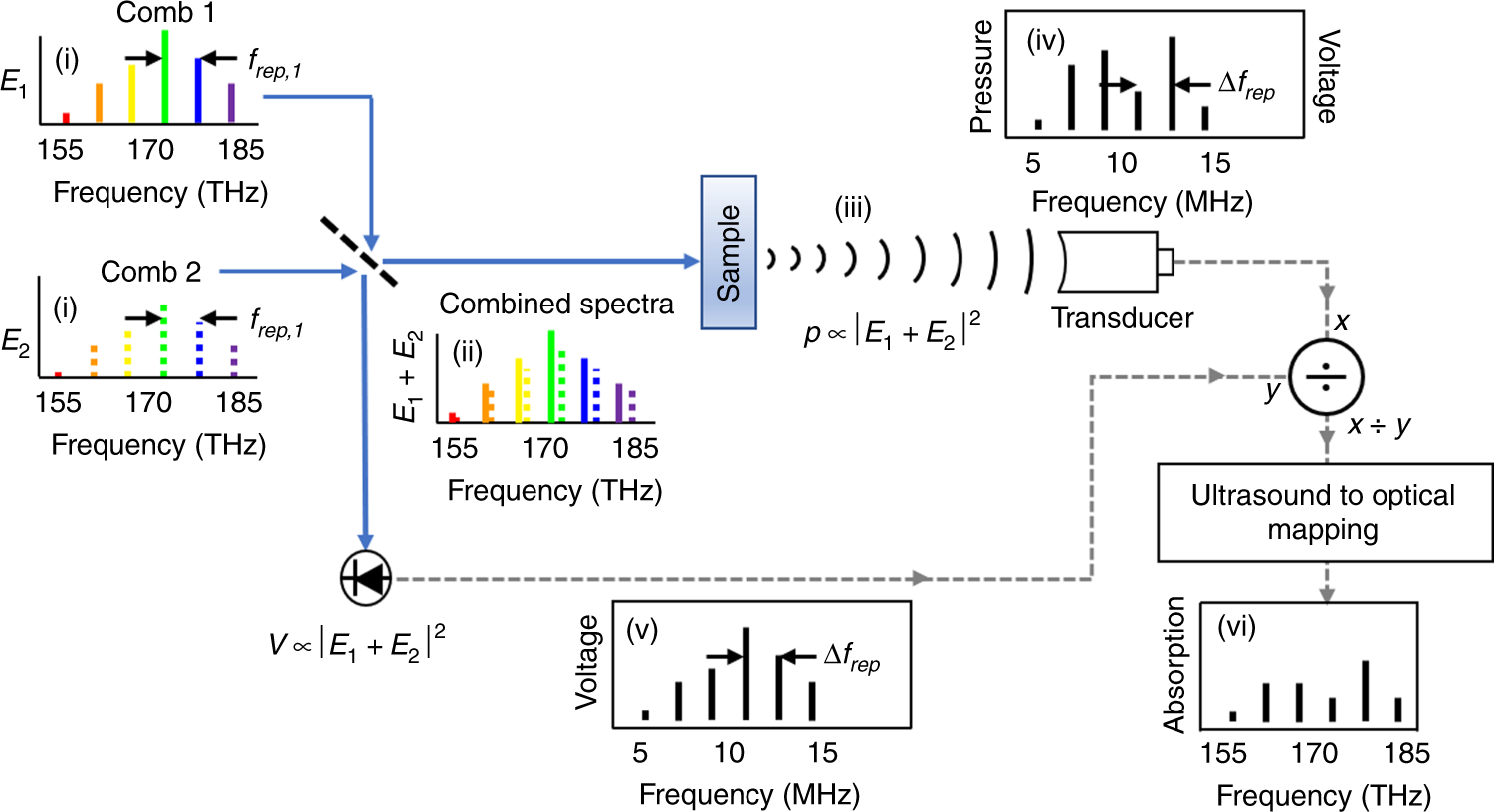

Fig. 1: Schematic of dual-comb photoacoustic spectroscopy.

Two frequency combs (i) are combined on a beam splitter and focused onto a sample. The sample absorbs this combined light (ii) and generates localized thermoelastic energy, which results in a PA pressure wave upon transmitting into the water (iii). An ultrasound transducer detects and converts this pressure wave to a voltage signal whose Fourier transform yields an ultrasound signal (iv). Simultaneously, the combined comb light from the other beam-splitter branch is focused onto a photodetector to record the optical excitation spectrum as in DCS (v). The spectrally resolved DCPAS response is normalized to the intensity of the DCS excitation spectrum (v). Then a one-to-one mapping between the ultrasound and optical frequencies is applied to yield the sample’s optical absorption spectrum (vi). Note that the comb spectra are not to scale as there are 95,000 comb teeth within the ≈15 THz spectral bandwidth used in these experiments.
