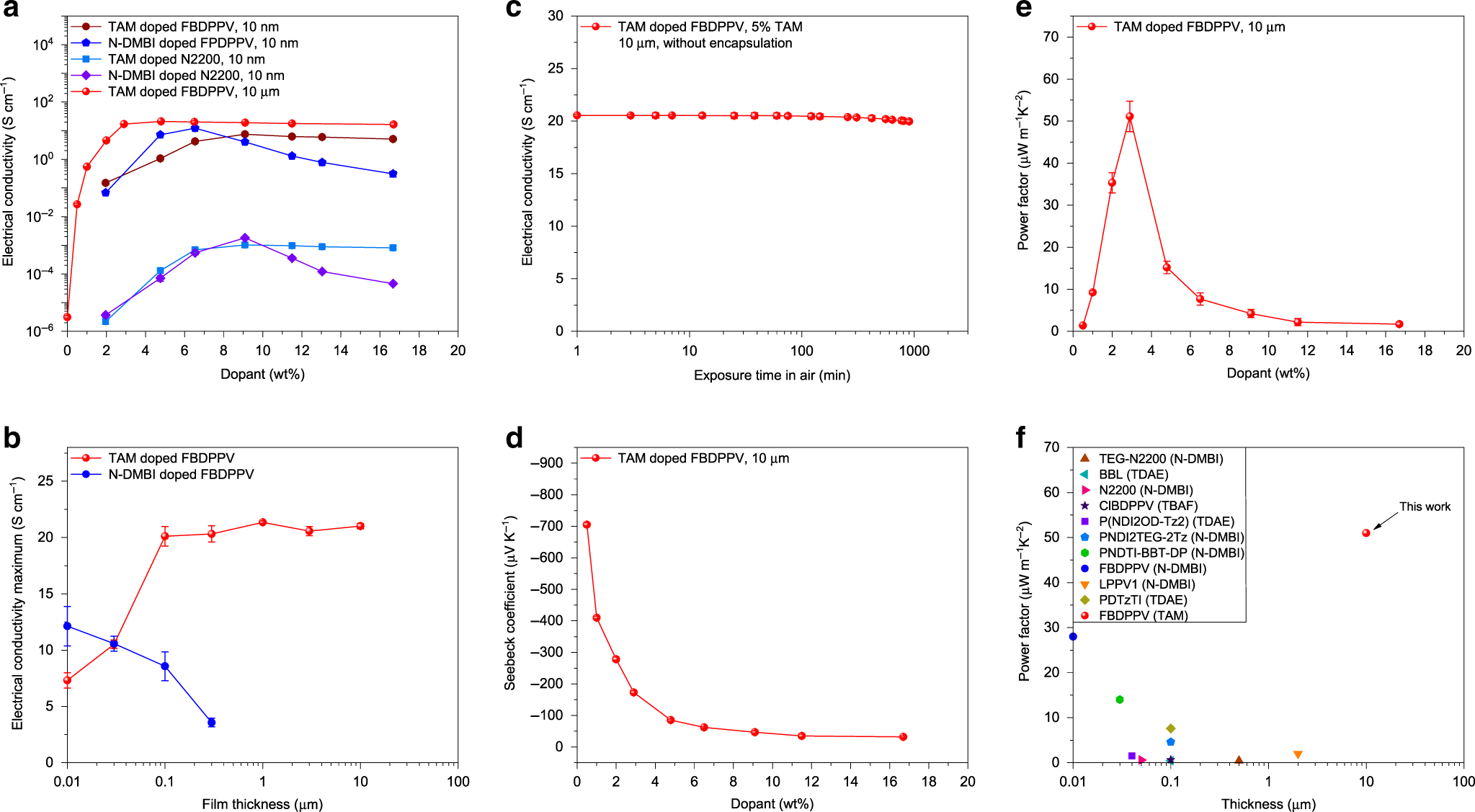

Fig. 4: Thermoelectric performance of TAM-doped organic semiconductors.
From: A thermally activated and highly miscible dopant for n-type organic thermoelectrics
a Dopant fraction-dependent electrical conductivity of TAM- and N-DMBI-doped polymers. b Thickness-dependent electrical conductivity maxima of TAM- and N-DMBI-doped FBDPPV. c Air stability of TAM-doped FBDPPV thick films without encapsulation. d Seebeck coefficients of TAM-doped FBDPPV in thick films. e Power factor of TAM-doped FBDPPV in thick films. f Thermoelectric performance comparison of TAM-doped FBDPPV with literature results (refs. 11,24,26,27,28,29,30,53,54,55,56,57,58). Error bars indicate the SD of ten experimental replicates. TAM-doped polymers present ultra-high thermoelectric performance in high thickness.
