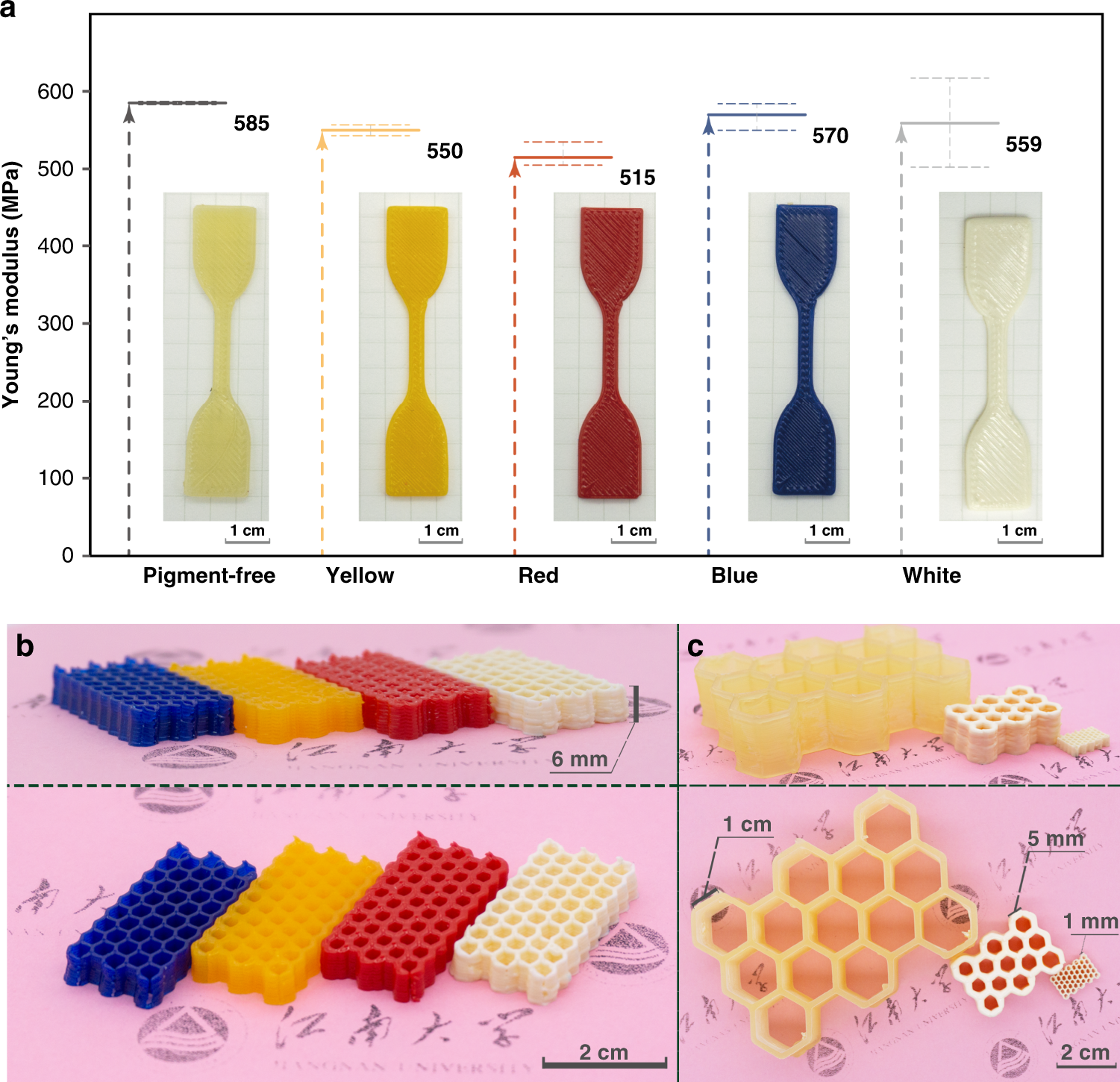

Fig. 5: NIR-DIW-printed objects with different colors and resolution.
From: 3D printing of multi-scalable structures via high penetration near-infrared photopolymerization
a Young’s modulus obtained by tensile test of 3D-printed samples, and error bars are reported as standard error of mean, and the scale bar is equivalent to 1 cm; b side view and top view of same structure printed by different pigments; c side view and top view of 3D-printed monolith structures in different resolution, the scale bar is equivalent to 2 cm.
