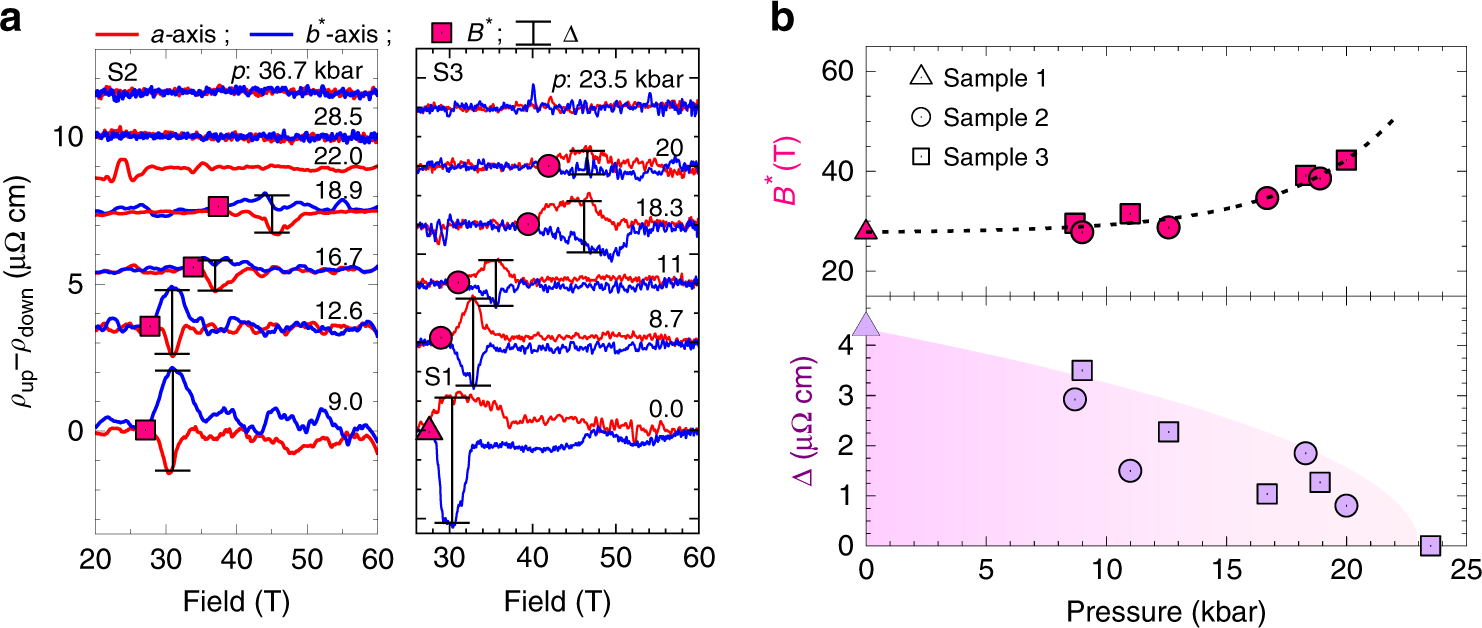

Fig. 3: Pressure evolution of the nematic state.
From: Non-monotonic pressure dependence of high-field nematicity and magnetism in CeRhIn5
a Difference between up- and down-field sweeps (data from Figs. 1c and 2 and Supplementary Fig. 3) for I∣∣a (red) and I∣∣b* (blue), respectively. The onset field B* is marked by squares. b (upper panel) Critical field B* from all three samples. Dashed line is an exponential fit. Lower panel: phenomenological strength of the nematic behavior, obtained as the maximal difference (marked in (a) by black bars) between each pair of curves.
