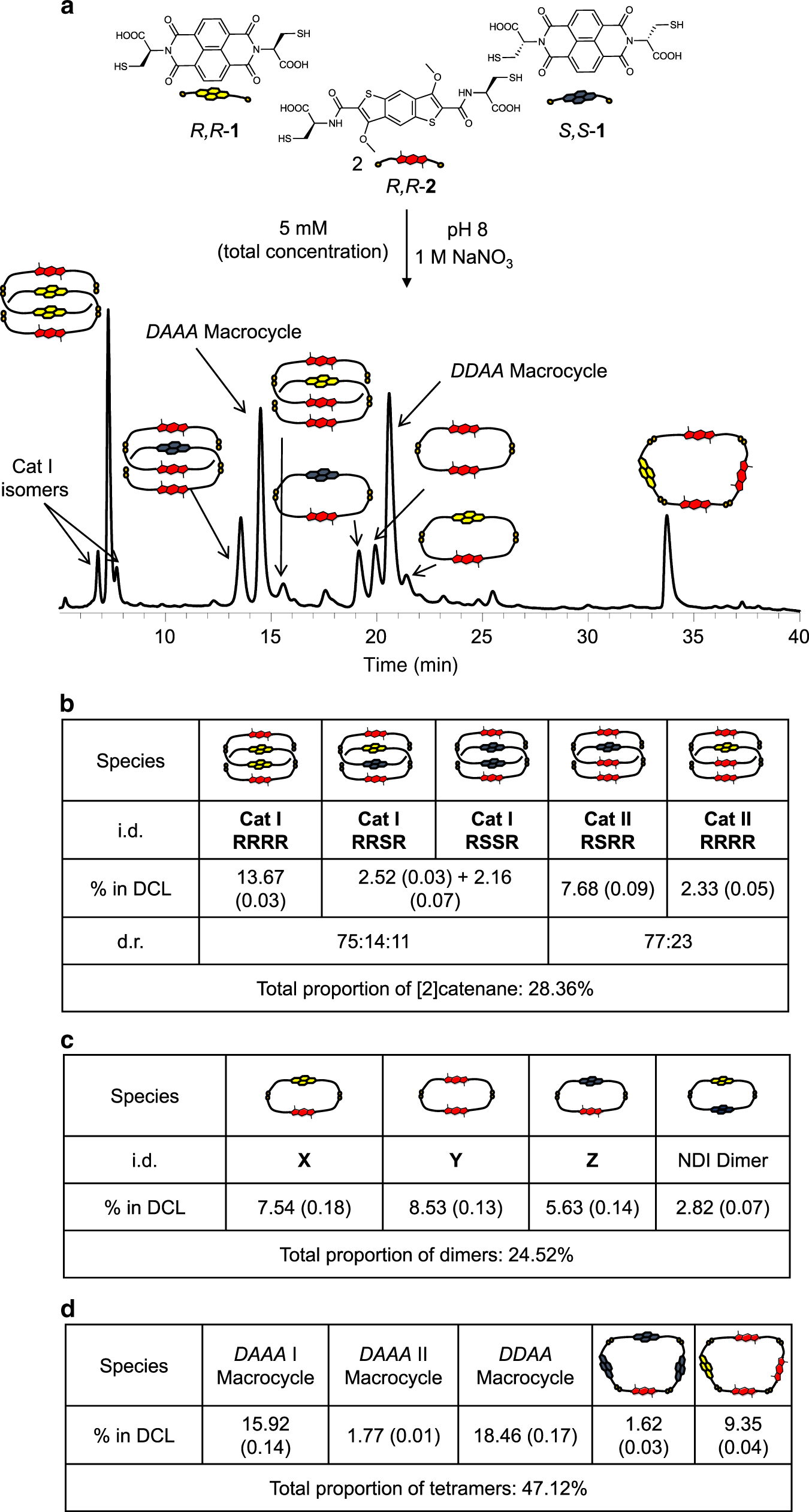

Fig. 1: Racemic DCL.
From: Structurally divergent dynamic combinatorial chemistry on racemic mixtures
a Reverse-phase HPLC analysis at 389 nm of R,R-1:S,S-1:R,R-2 (1:1:2 molar ratio, 5 mM total concentration) library in the presence of 1 M NaNO3; b the table shows the [2]catenanes i.d., percentages, diastereomeric ratios, and the total proportions of [2]catenanes in the DCL; c the table shows the dimers i.d., percentages and the total proportions of [2]catenanes in the DCL; d the table shows the macrocycles i.d., percentages and the total proportions of [2]catenanes in the DCL. The integrations were done in triplicate and the RMSD is reported in parenthesis along with the value. For a complete description of the library, see Supplementary Fig. 71.
