Fig. 2: The bafA gene affects angiogenesis-related gene expression in endothelial cells.

From: The Bartonella autotransporter BafA activates the host VEGF pathway to drive angiogenesis

Fig. 2: The bafA gene affects angiogenesis-related gene expression in endothelial cells.

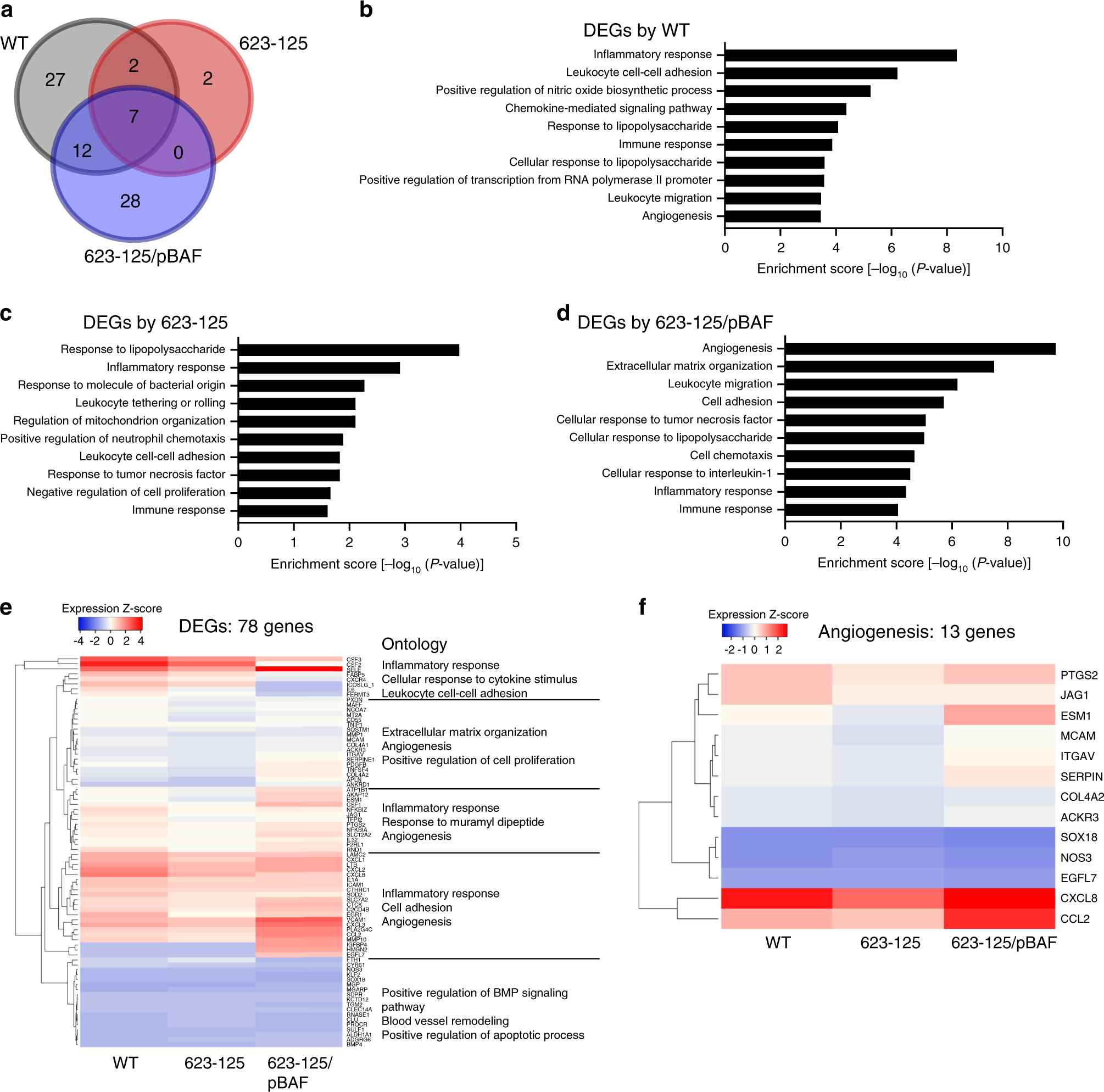

a Venn diagram showing the overlap among differentially expressed genes (DEGs; fold change compared with uninfected HUVECs >1.5, three biological replicates) in HUVECs co-cultured with three Bh strains: WT (gray), 623-125 (red), or 623-125/pBAF (blue). b–d Enrichment of GO categories among DEGs in HUVECs co-cultured with Bh-WT (b), 623-125 (c), or 623-125/pBAF (d). e Heatmap representation of expression of all DEGs and selected enrichment GO terms for each cluster. f Heatmap of angiogenesis-related genes extracted from DEGs. Source data are provided as a Source Data file.
