Fig. 1: Electron backscatter diffraction maps.

From: Microscopic origins of performance losses in highly efficient Cu(In,Ga)Se2 thin-film solar cells

Fig. 1

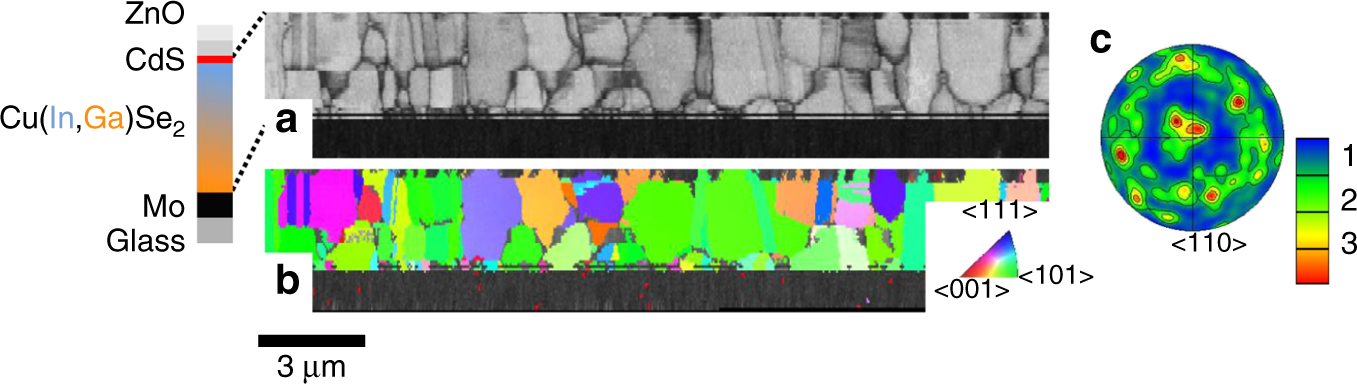

a Cross-sectional EBSD pattern-quality map of the CIGSe in the analyzed solar cell stack and b orientation distribution map with local orientations perpendicular to the substrate highlighted by false colors within the related inverse pole figure, as well as c the pole figure for the <110> orientation (with the multiples of random values given by false colors).
