Fig. 5: Quantitative SZI database analysis.

From: A transdisciplinary and community-driven database to unravel subduction zone initiation

Fig. 5

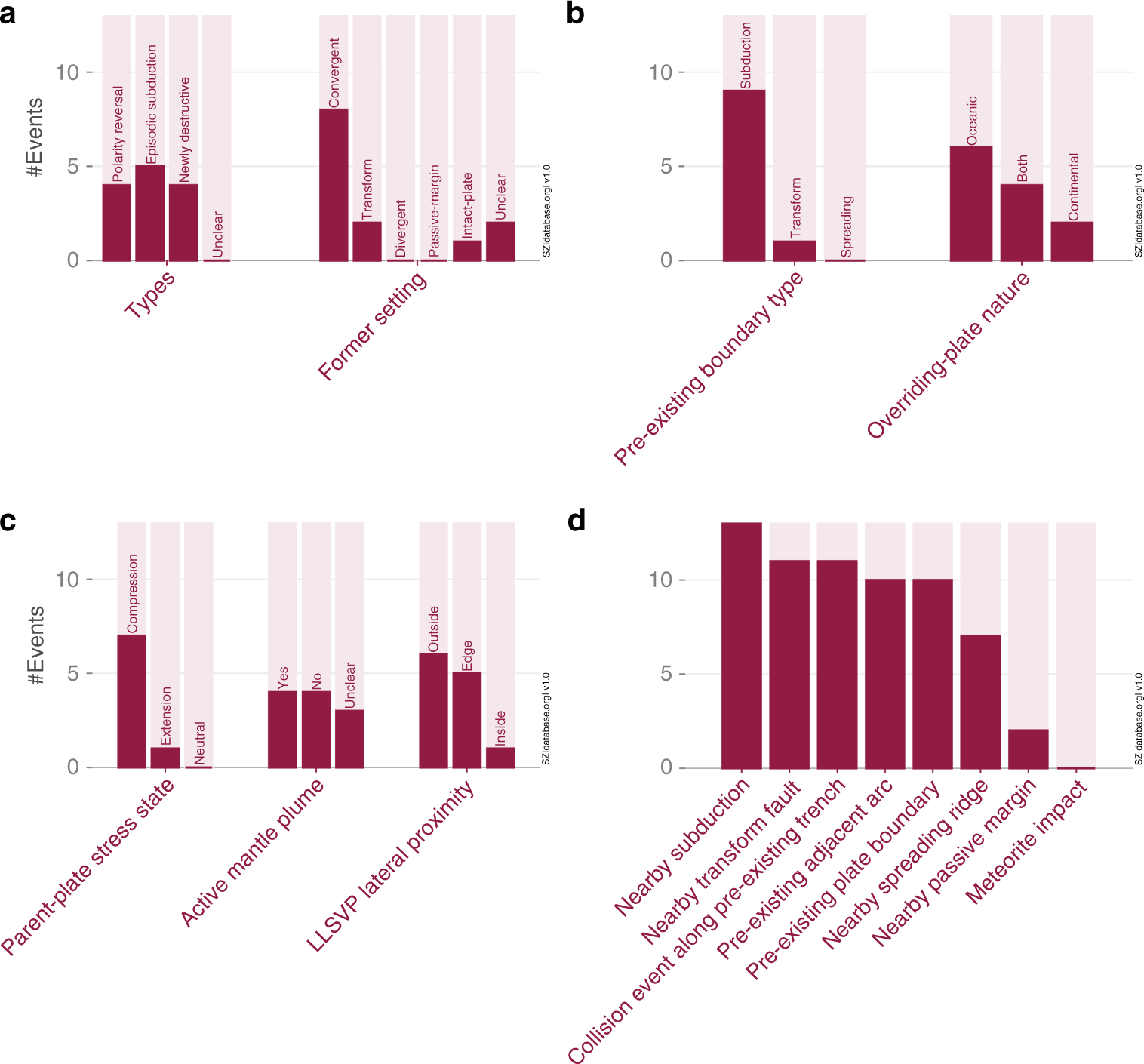

The number of SZI events that fulfil specific aspects (dark pink bars) versus the total number of SZI events diagnosed (light pink bars; indicating a total of 13 SZI events). a–c The distribution of all SZI events into the different SZI types and former plate settings, and various other distinctive tectonic and mantle dynamic properties. d Total numbers of SZI events representing a given Earth-system characteristic. ‘Nearby’: within a 1500 km radius.
