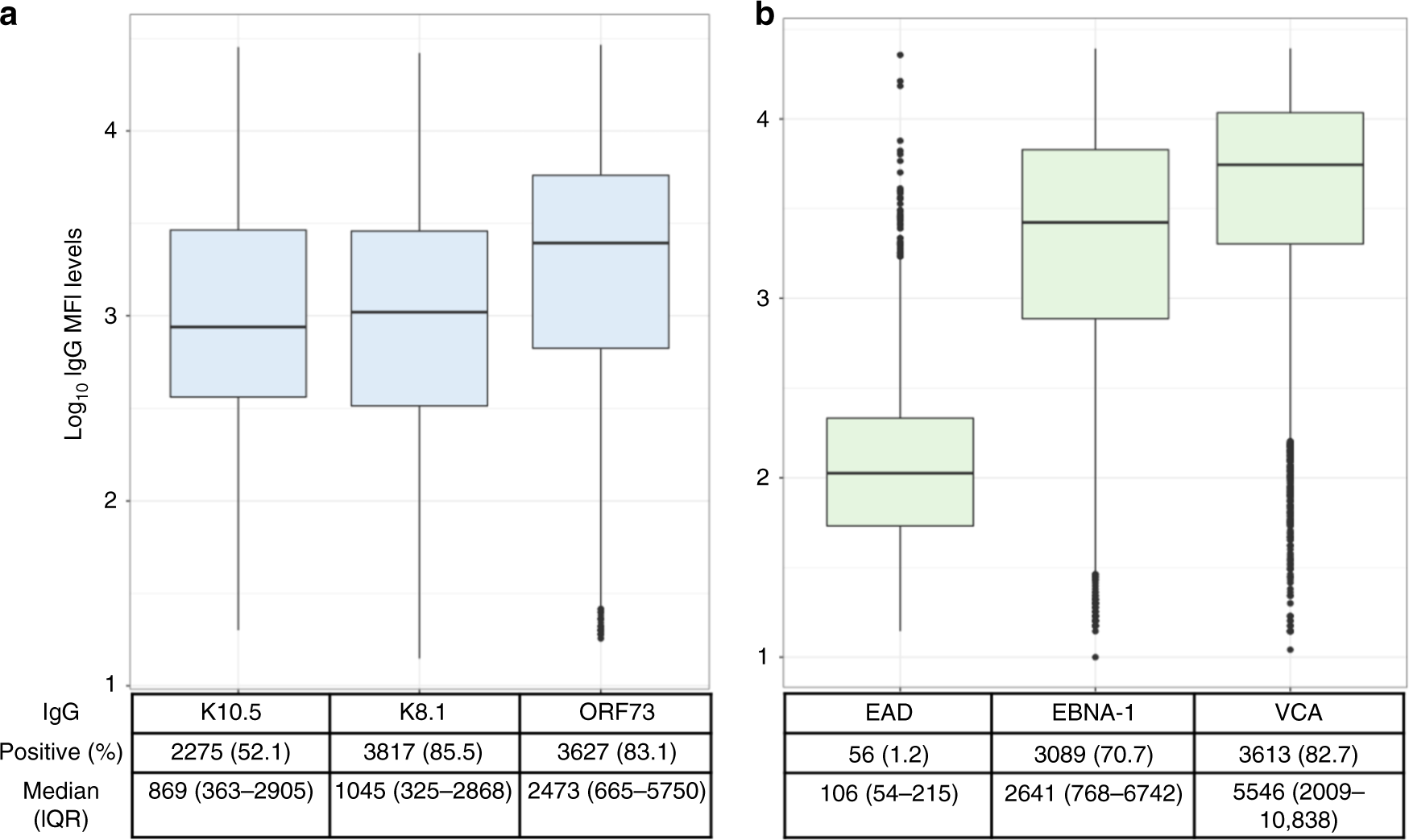

Fig. 1: Inter-individual variability in IgG antibody responses to KSHV and EBV (n = 4365 individuals).

From: Distinct genetic architectures and environmental factors associate with host response to the γ2-herpesvirus infections

Fig. 1: Inter-individual variability in IgG antibody responses to KSHV and EBV (n = 4365 individuals).

a Distribution of anti-KSHV antibody levels (Log10 MFI) for K10.5 (min = 0, max = 28,514), K8.1 (min = 0, max = 26,468) and ORF73 (min = 0, max = 29,308). b Distribution of anti-EBV antibody levels (Log10 MFI) for EAD (min = 0, max = 22,747), EBNA-1 (min = 0, max = 24,696), VCA (min = 11, max = 24,754). Seropositivity to all antigens and median (centre) plus IQR displayed in the text box.
