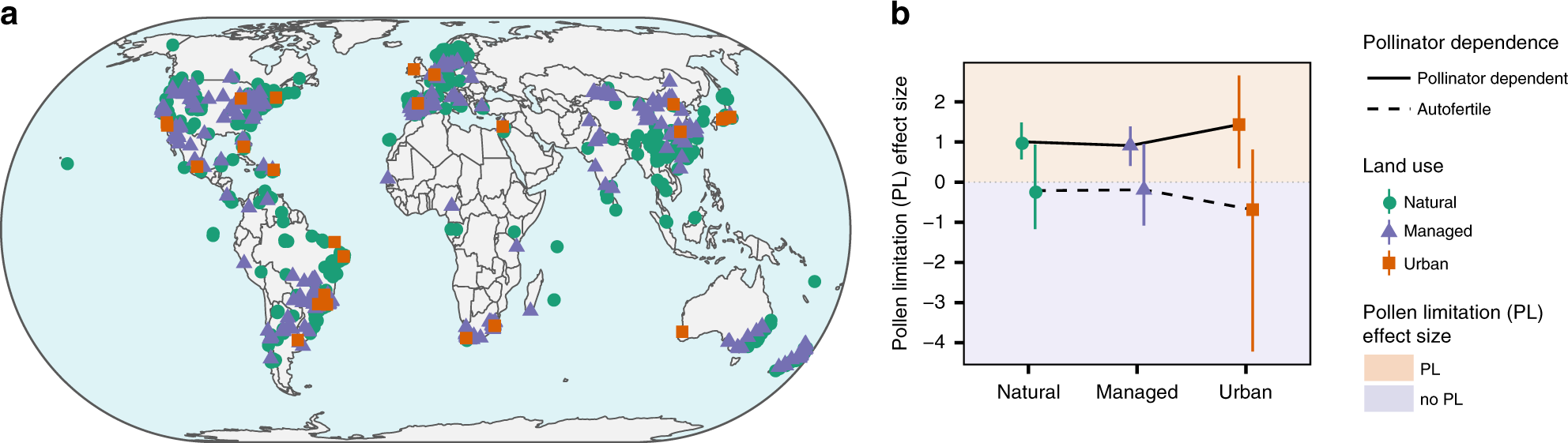

Fig. 1: The global distribution of data from the GloPL database (a) and an interaction plot showing the interaction between land use and pollinator dependence in respect to the effect size of pollen limitation (PL) (b).
From: Land use and pollinator dependency drives global patterns of pollen limitation in the Anthropocene
The point colour indicates the dominant land use category urban (orange), managed (purple), and natural (green) in (a, b). In the interaction plot, pollinator dependant plants are indicated by the solid line and autofertile plants by the dashed line. The area of the plot shaded orange indicates an effect size above (i.e. plants are PL) and the area of the plot shaded purple indicates an effect size below (i.e. plants are not PL). The interaction plot illustrates the average modelled result and 95% confidence intervals (shown as error bars) from 500 bootstrapped phylogenetic meta-analyses with the response variable PL and the interaction between land use and pollinator dependence as the predictor variables. Source data are provided as a Source Data file.
