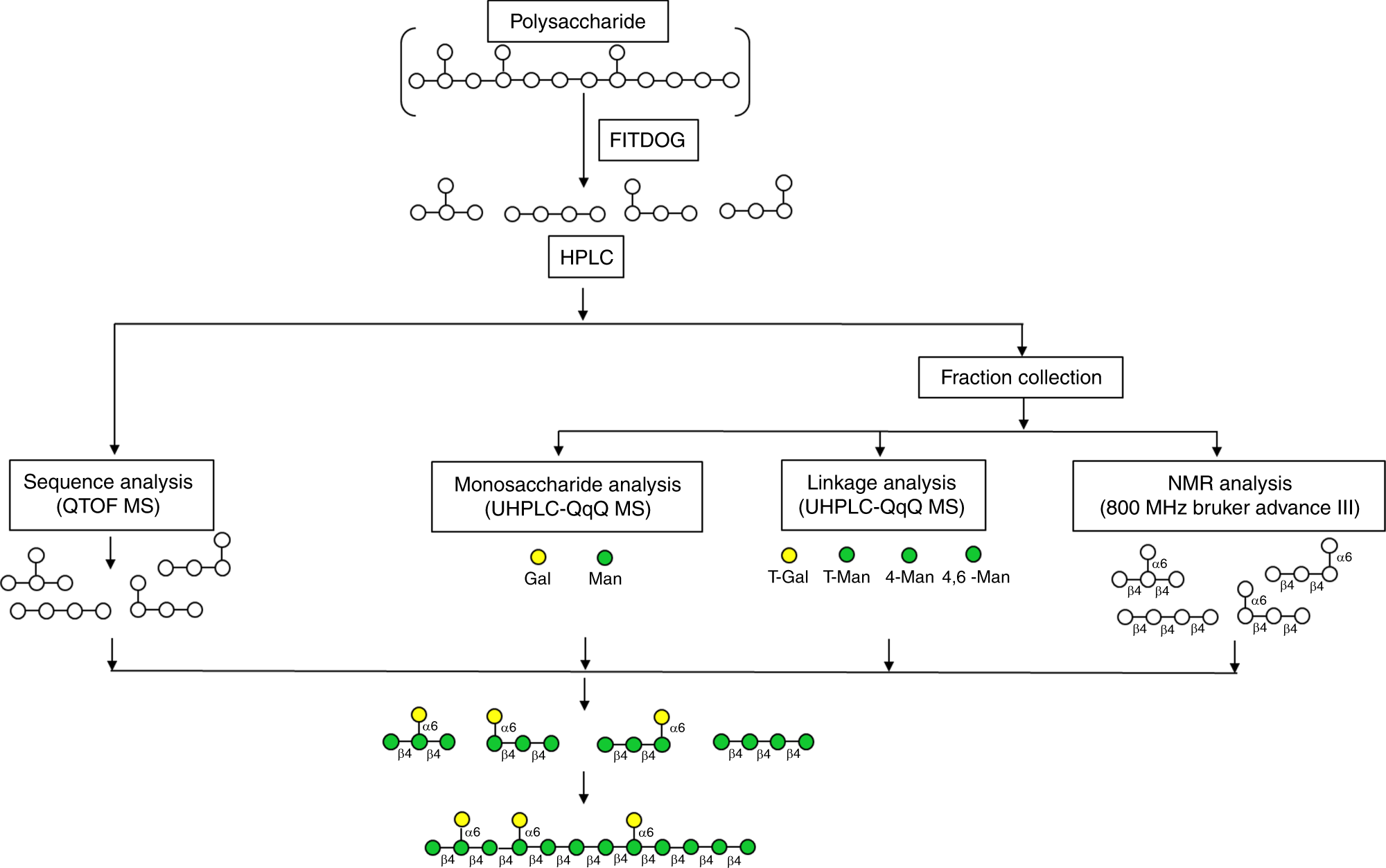

Fig. 7: Schematic workflow of the de novo analysis of oligosaccharides derived from polysaccharide depolymerization.
From: A nonenzymatic method for cleaving polysaccharides to yield oligosaccharides for structural analysis
Galactomannan is exemplified. Green circles represent mannose and yellow circles represent galactose.
