Fig. 4: Control experiments and isotope-labeling reactions.

From: Rhodium(II)-catalyzed multicomponent assembly of α,α,α-trisubstituted esters via formal insertion of O–C(sp3)–C(sp2) into C–C bonds

Fig. 4

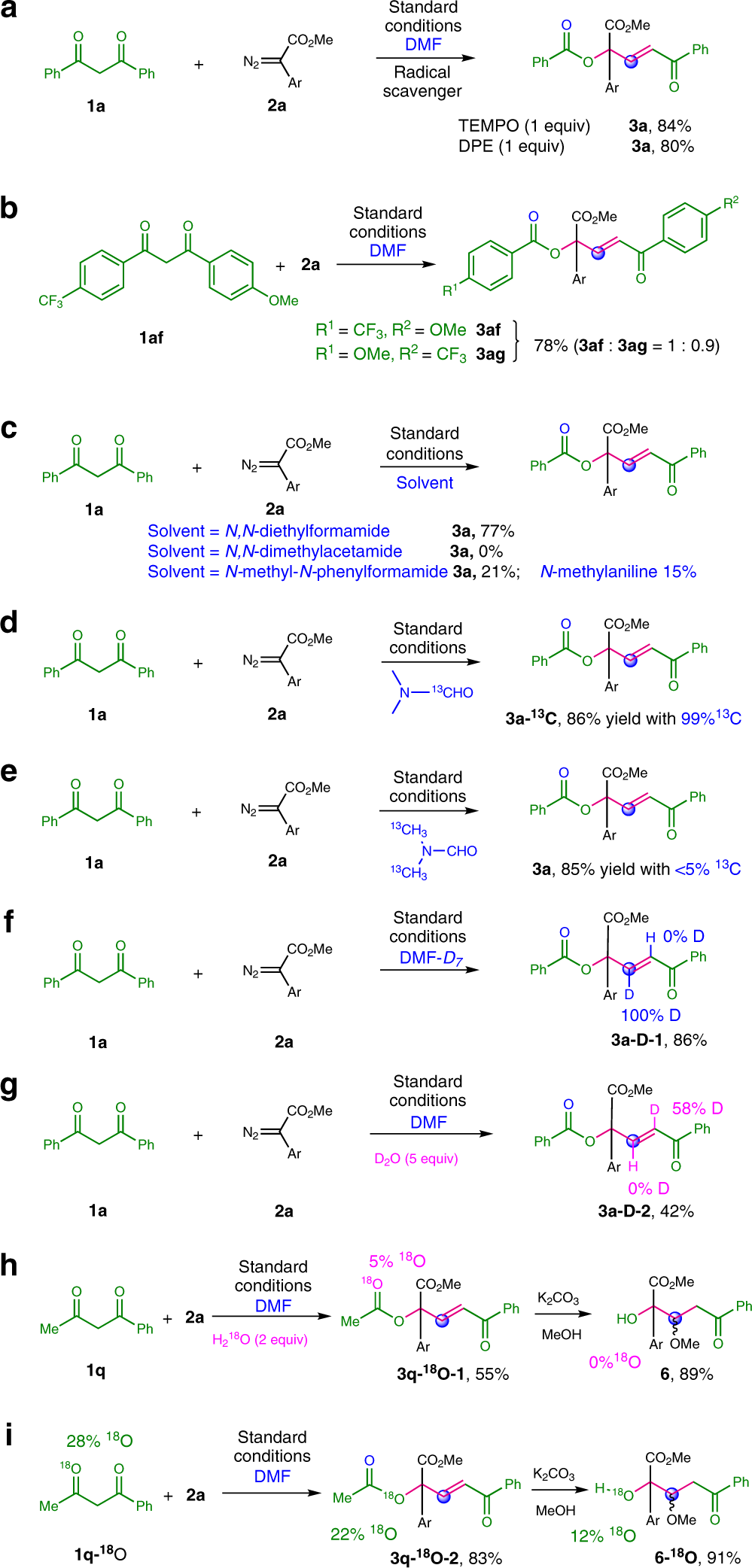

a Radical trapping experiments. b The reaction of unsymmetrical 1,3-dione. c The reactions using other amide solvents. d 13C-labeled experiment using DMF-formyl-13C as solvent. e 13C-labeled experiment using DMF-dimethyl-13C2 as solvent. f Deuterium-labeling experiments using DMF-D7 as solvent. g Deuterium-labeling experiments in the presence of D2O. h 18O-labeled experiment in the presence of H218O. i The reactions of 18O-labeled 1,3-dione.
